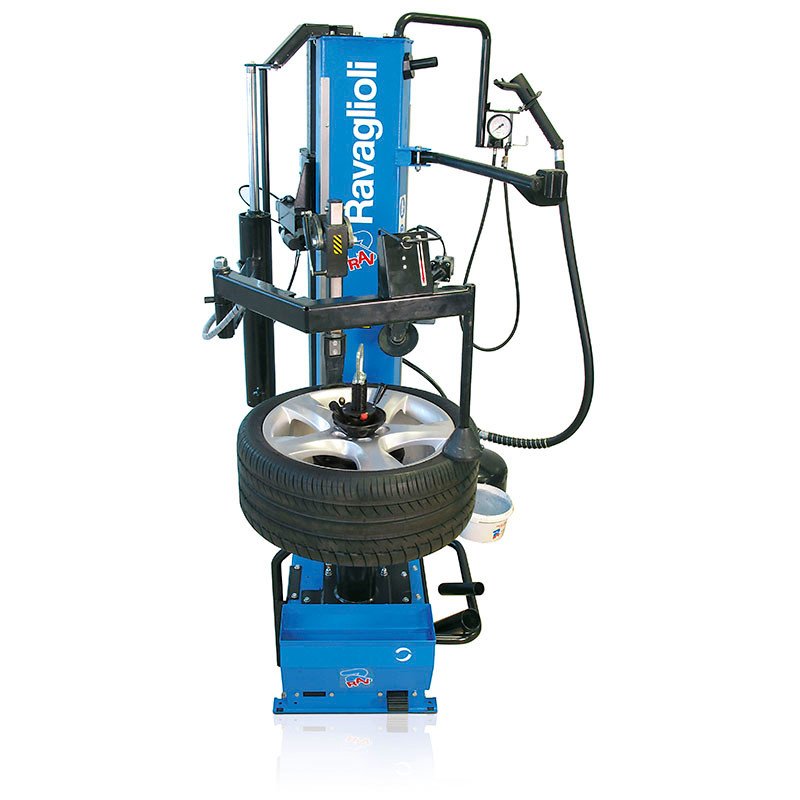

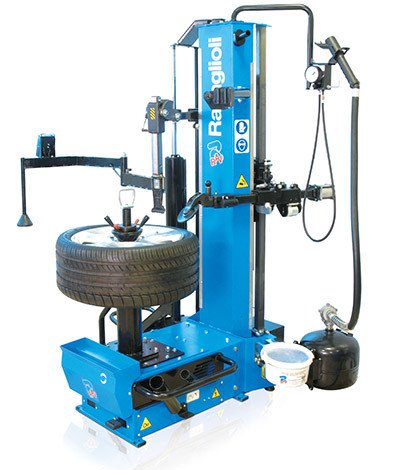

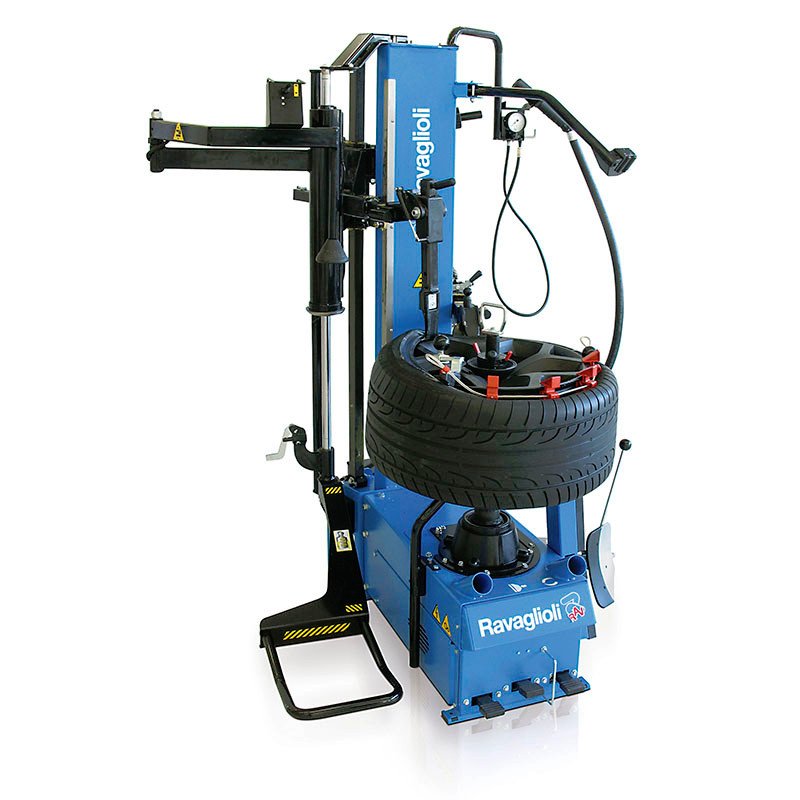

Probably the most advanced automotive tire changer on the market today. There is no need for a tire iron, metal on metal contact is eliminated which avoids damage to expensive rims. Other features of the RAV MAGIC include:
Completely Leverless:
The real no lever tire changer - never use a tire iron again!

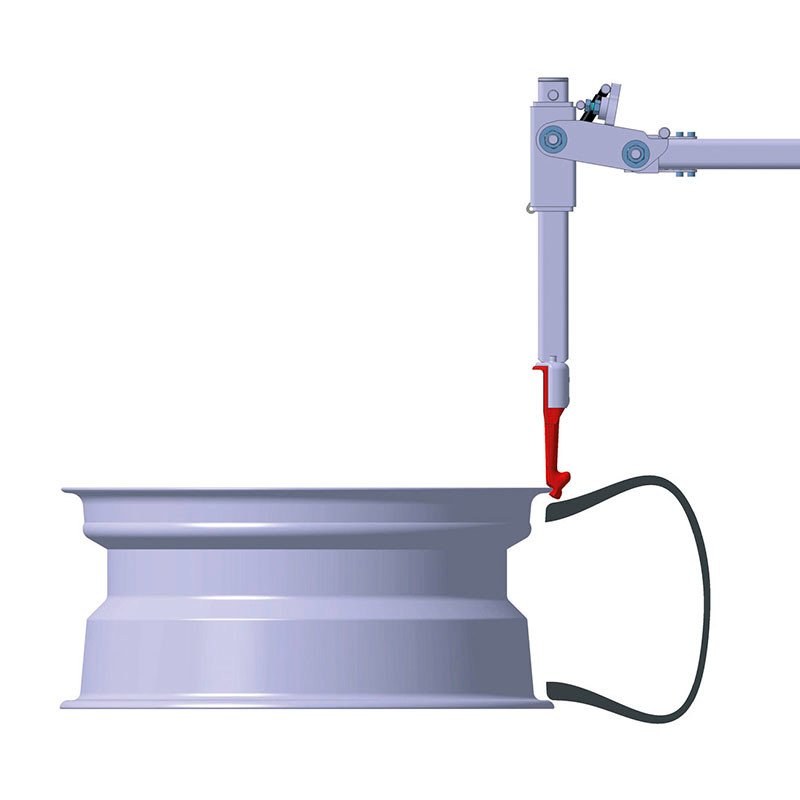

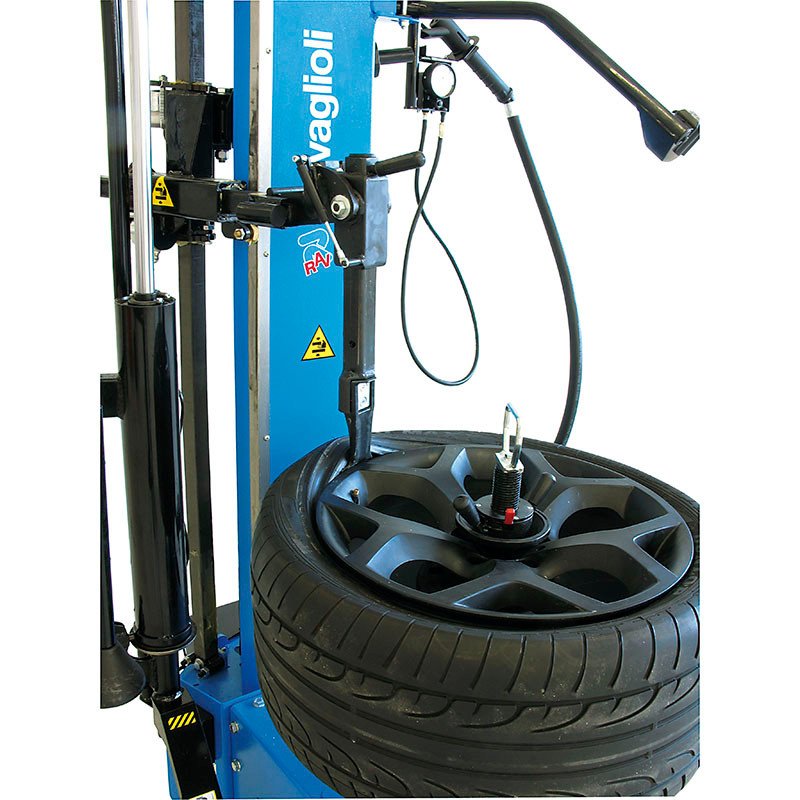

ROBOTOOL:

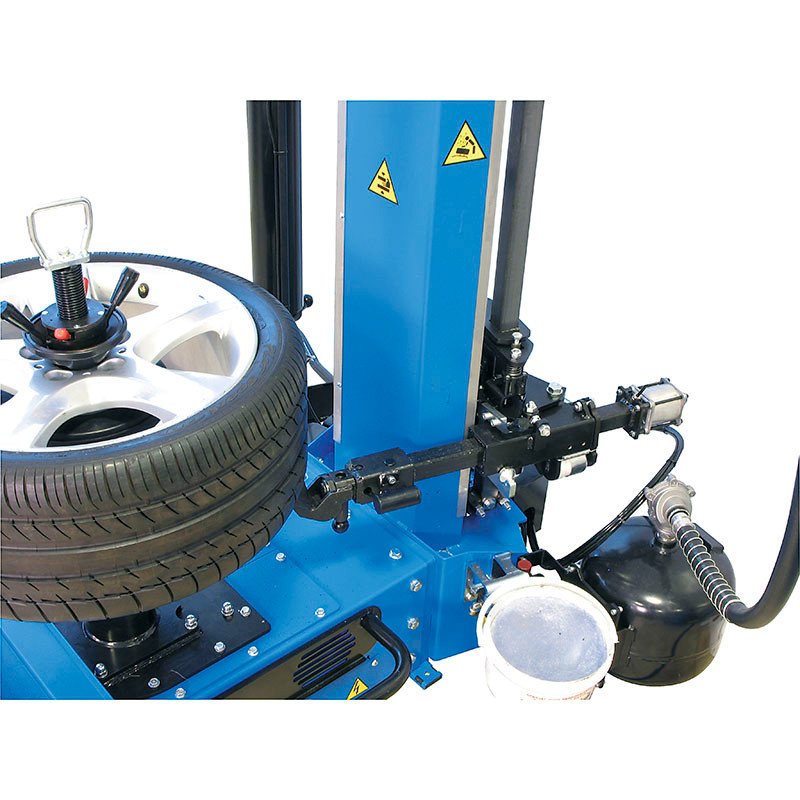

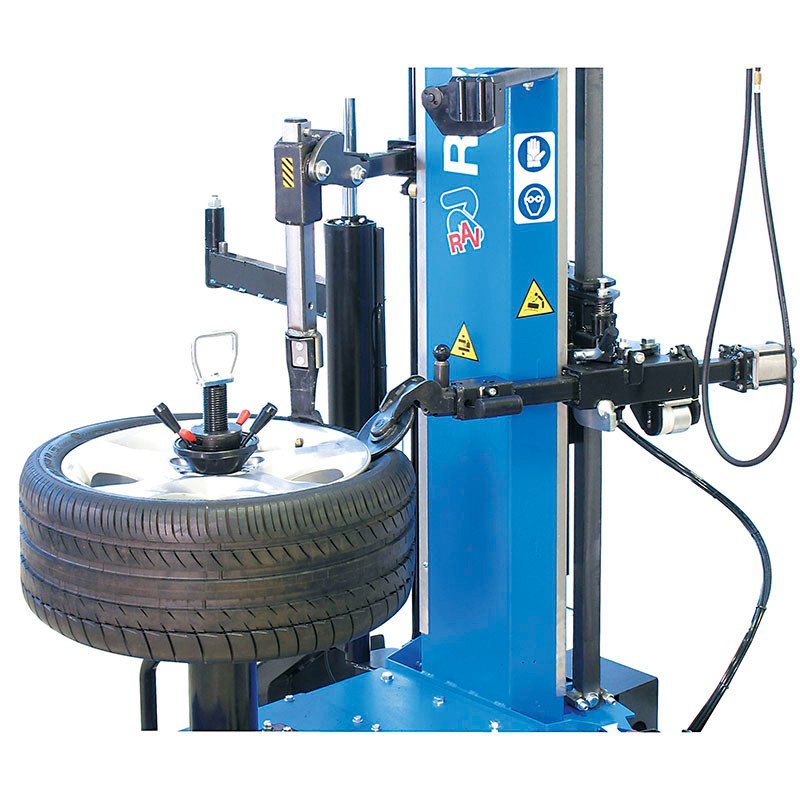

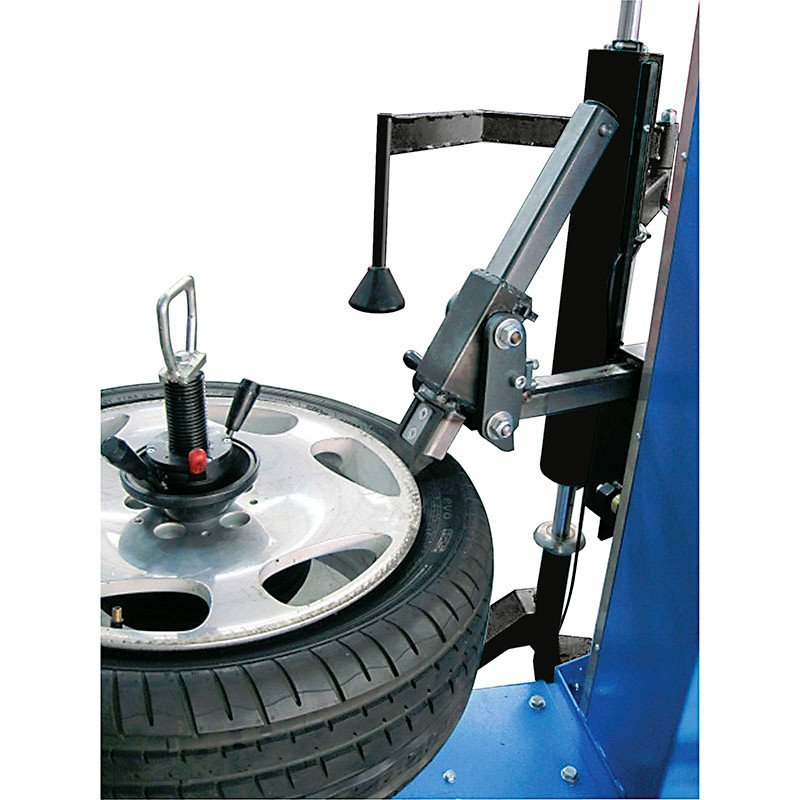

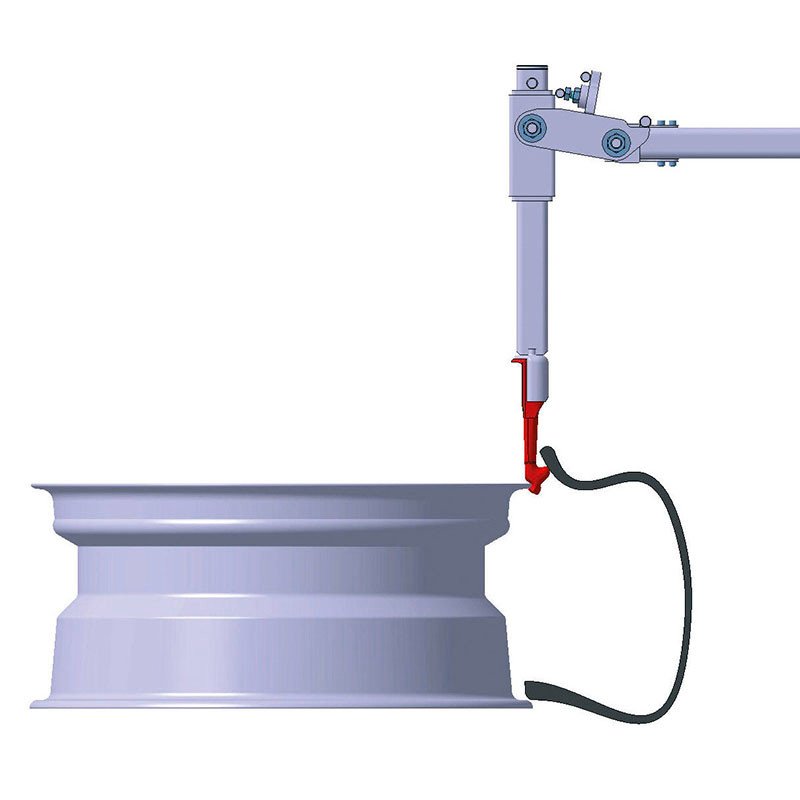

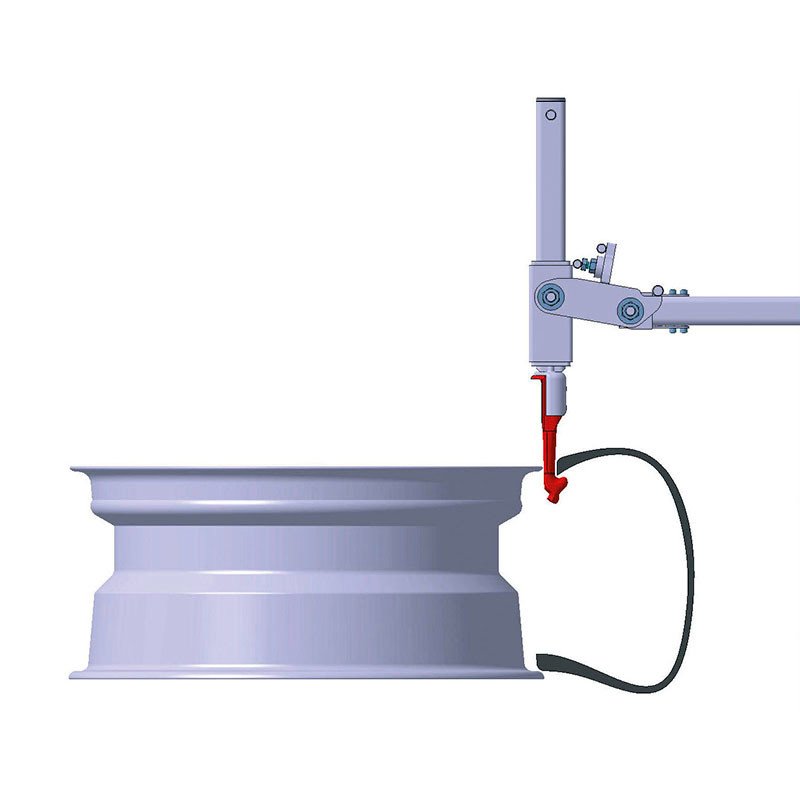

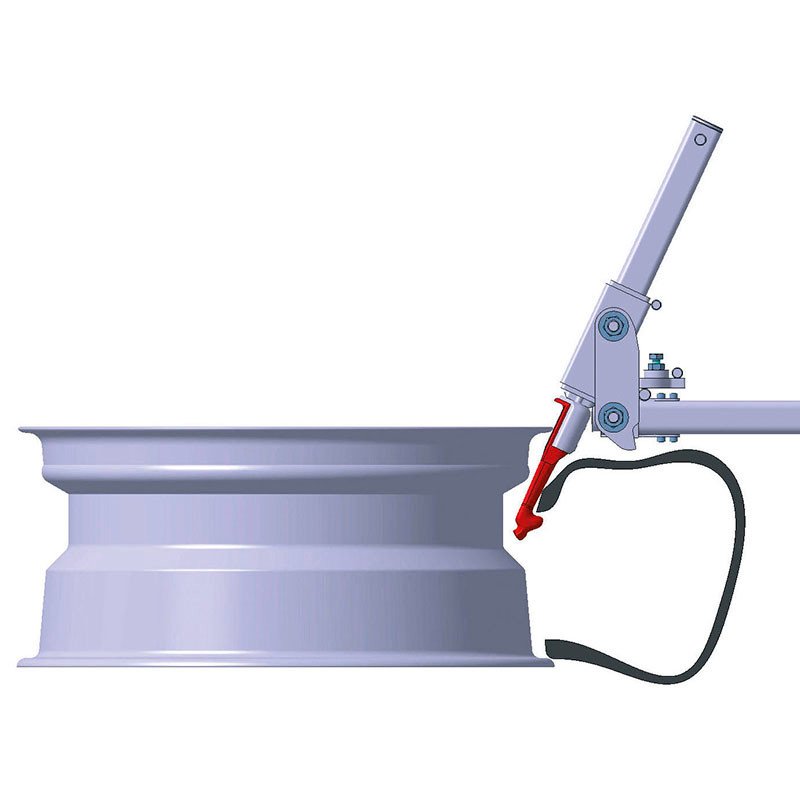

The unique and patented ROBOTOOL operates between the rim and tire, then levering on the rim progressively pulls up the bead, minimizing stress on the tire.
AUTO-TOUCH Function: Combines Easy Controls, ROBOTOOL and Easy Roller to make changing any tire easy.

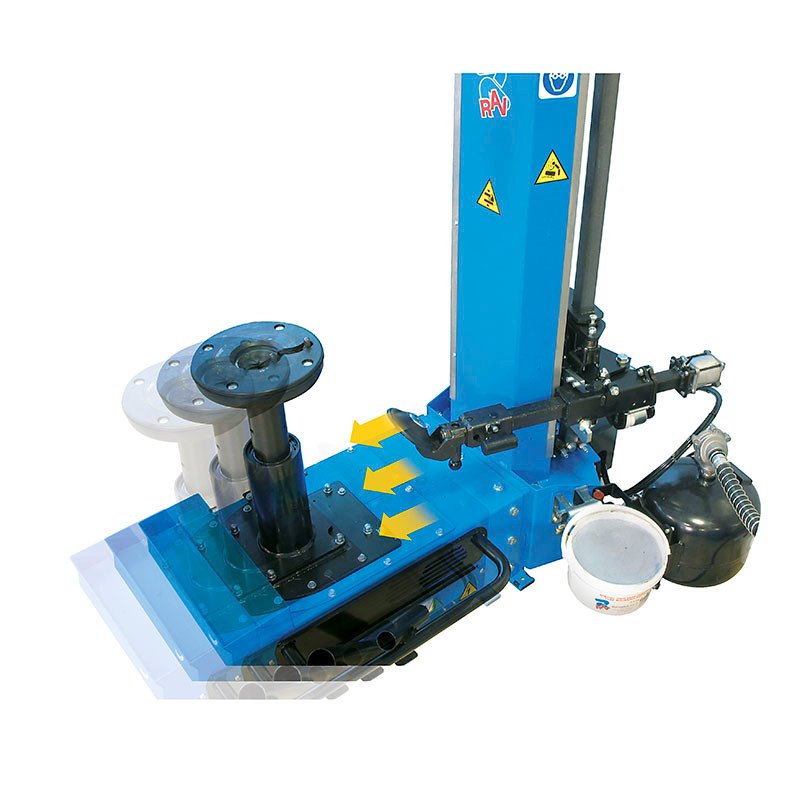

Adjustable Locking Table:
Ability to extend the working range of the locking table up to 30”.
Variable Speed INVEMOTOR: Allows the operator to control rotation speed of the clamping table with simple to operate foot pedal. Variable speed from 0 to 16 RPM offers the best possible control.
Technical Data
|
G1150.30 Magic
|
Handles Wheels from |
10" - 26" / 12" - 28" / 14" - 30"
|
Max Wheel Weight |
15"
|
Max Wheel Diameter |
45"
|
Bead Breaker Power (Each Arm) |
2645 lbs
|
Bead Breaker Movement |
Automatic
|
Rotation Motor |
1.5 kw Invemotor
|
Recommended Air Supply |
8-10 bar
|
Power Supply |
1 ph, 200/265v, 50/60HZ
|
Shipping Weight |
745 lbs (338 kg)
|
