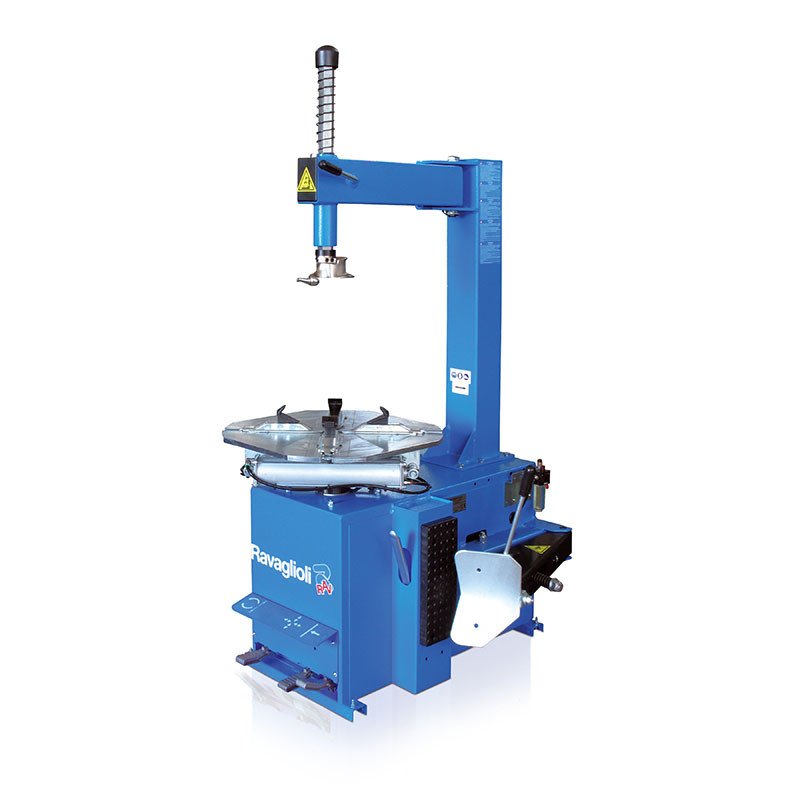

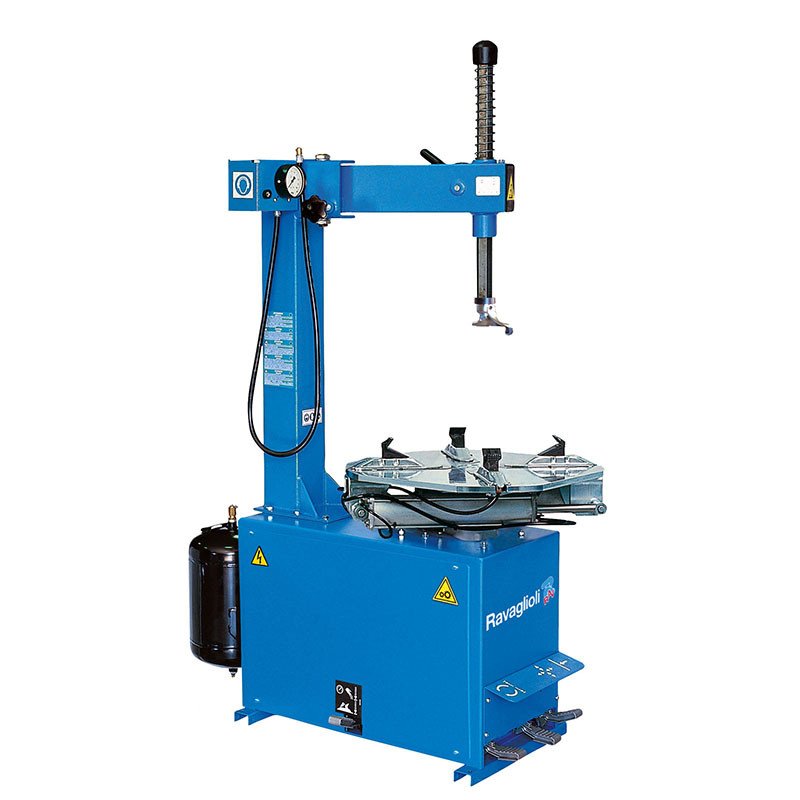

G7240.22 Standard Swing Arm Tire Changer


View Brochure


Other Tools

Print  Print
Price: $4403,00 $ $3742,00 $

 This European designed world class product is RAV's entry level model at an entry level price. Features of the G7240 Swing Arm include:

  • Optimized construction to obtain the best price/performance ratio without sacrificing operator satisfaction
  • Top European quality components are sourced without sacrificing power or performance at an entry level price

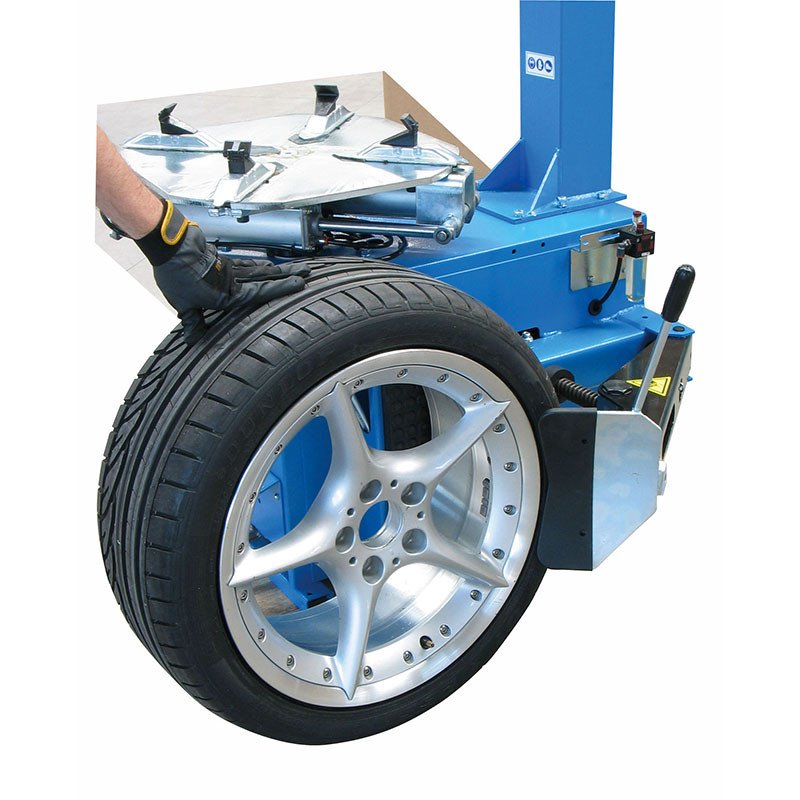

  • Bead breaker has a galvanized cylinder for maintenance free bead breaking and a long live

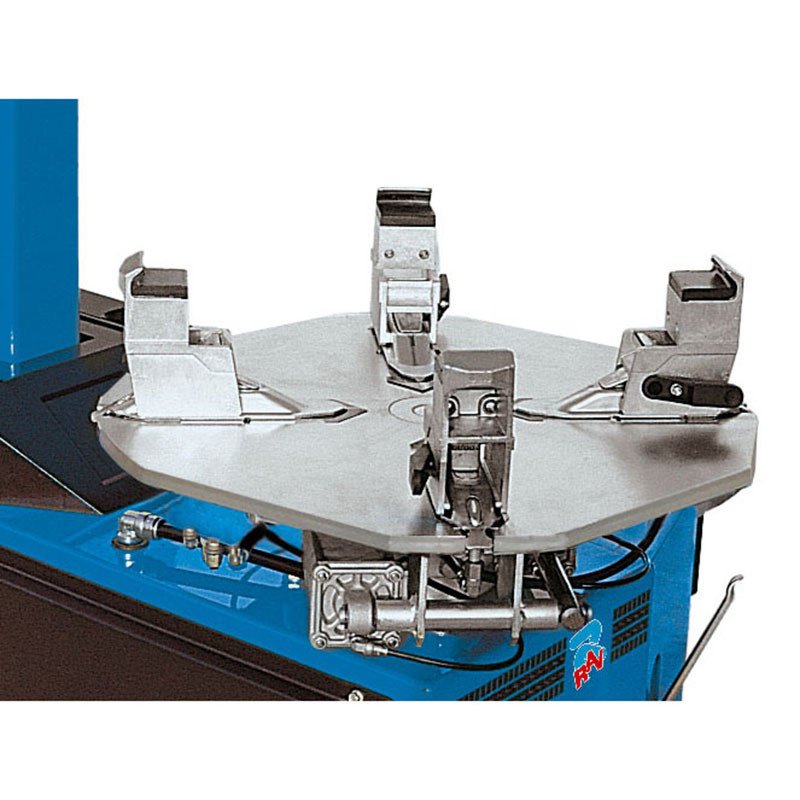

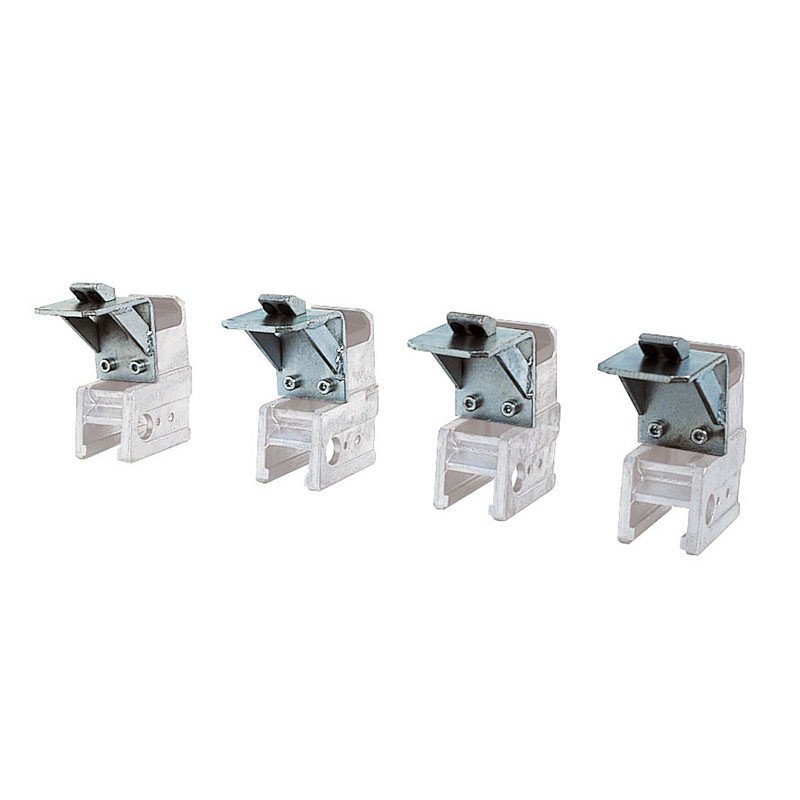

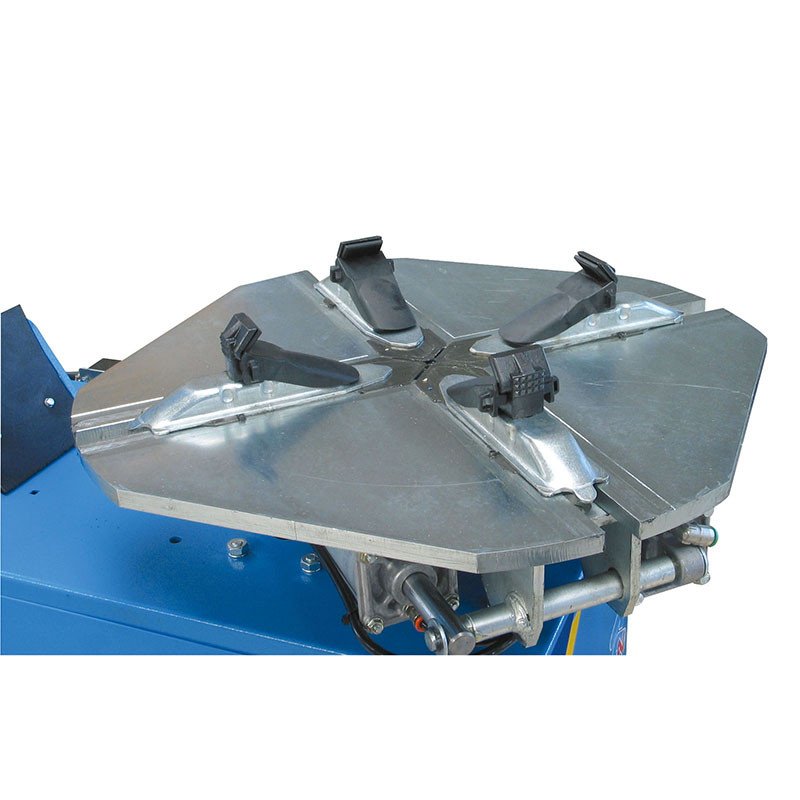

  • Rigid self-centering clamping tabletop and wide clamping range

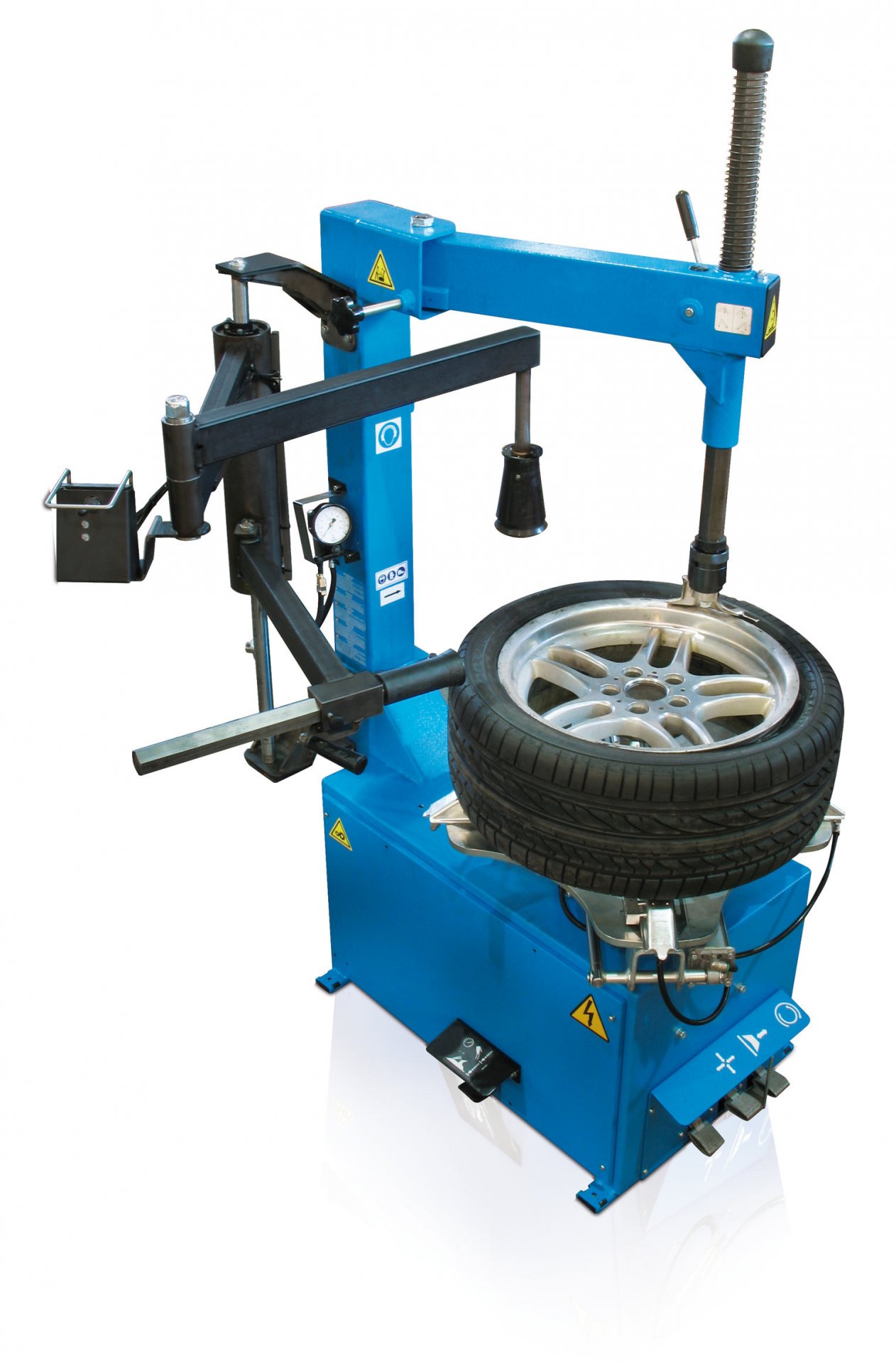

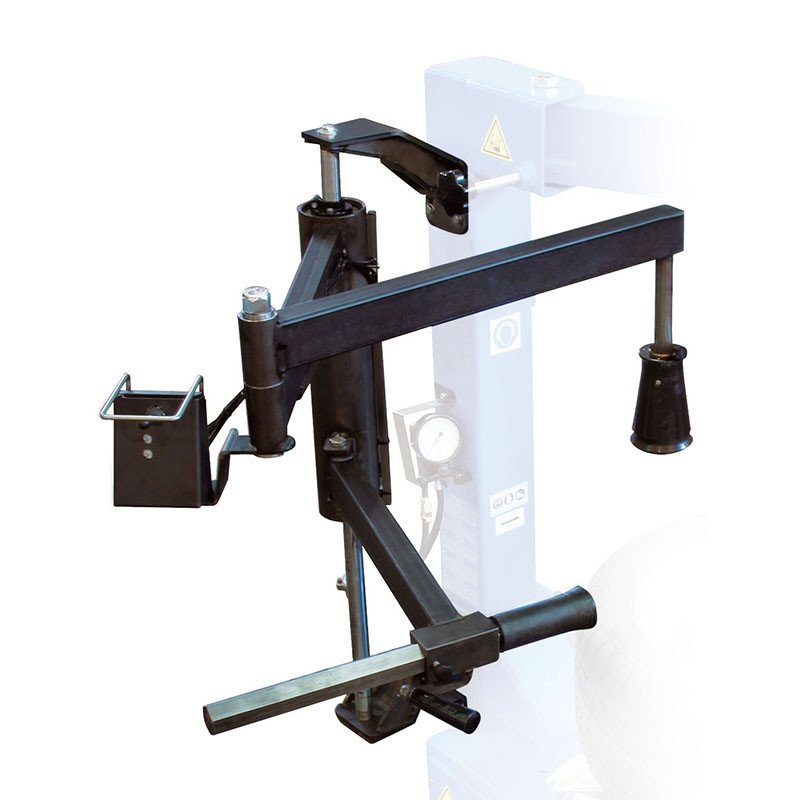

  • Available with optional PLUS 91N Helper Arm
  • 110V and air required
Technical Data
G7240
External Clamping
10" - 22"
Internal Clamping
12" - 24"
Max. Tire Diameter
40" (1000mm)
Max. Rim Width
12" (305 mm)
Max Bread Breaker Opening
12" (305 mm)
Bead Breaker Cylinder Power at 175 PSI
8000 LBS (3600 kg)
Motor
110V 60 cycles 1 hp
Turntable Rotation Speed
9 rpm
Max. Torque to Turntable
1200 / 900 Nm
Shipping Weight
430 lbs

Whether you are opening a new business or need to replace your standard swing arm changer for your existing business, the RAV G7240 Standard Swing Arm tire changer is an affordable solution for any shop. The dependable heavy duty structure helps to ensure proper working conditions at all times.

Call us at 1-877-RING-AET (1-877-746-4238) for information or pricing today!
