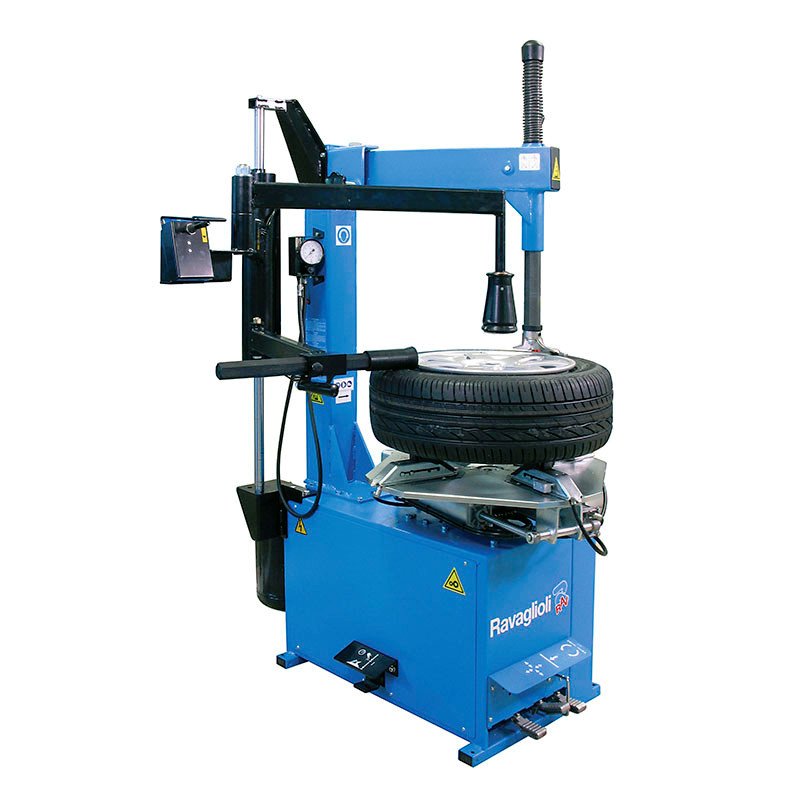

Manufacturers Images G7246.26A with Helper Arm

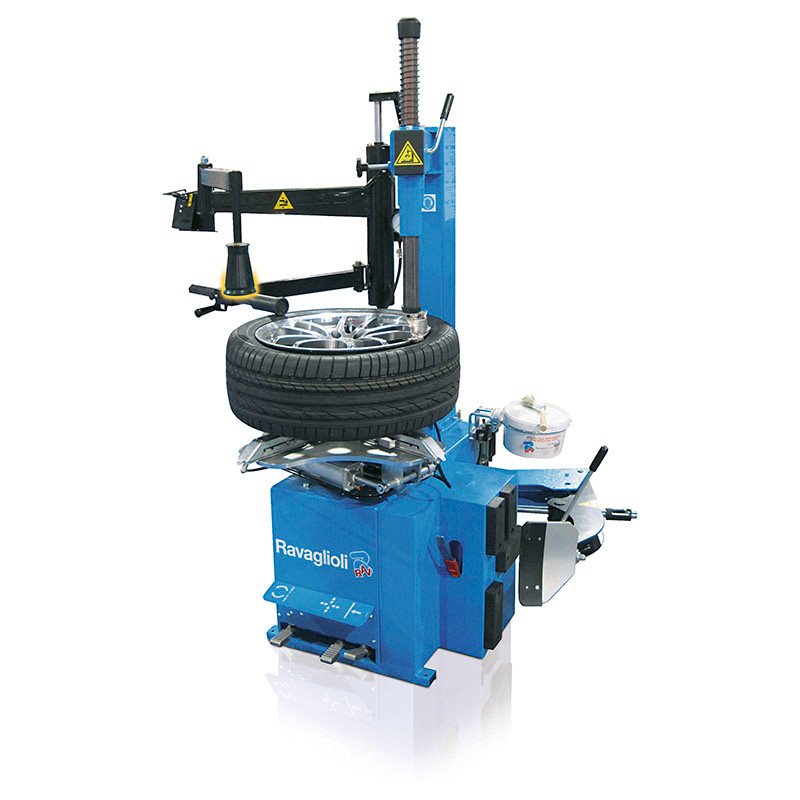

G7246.26A High Performance Swing Arm Changer

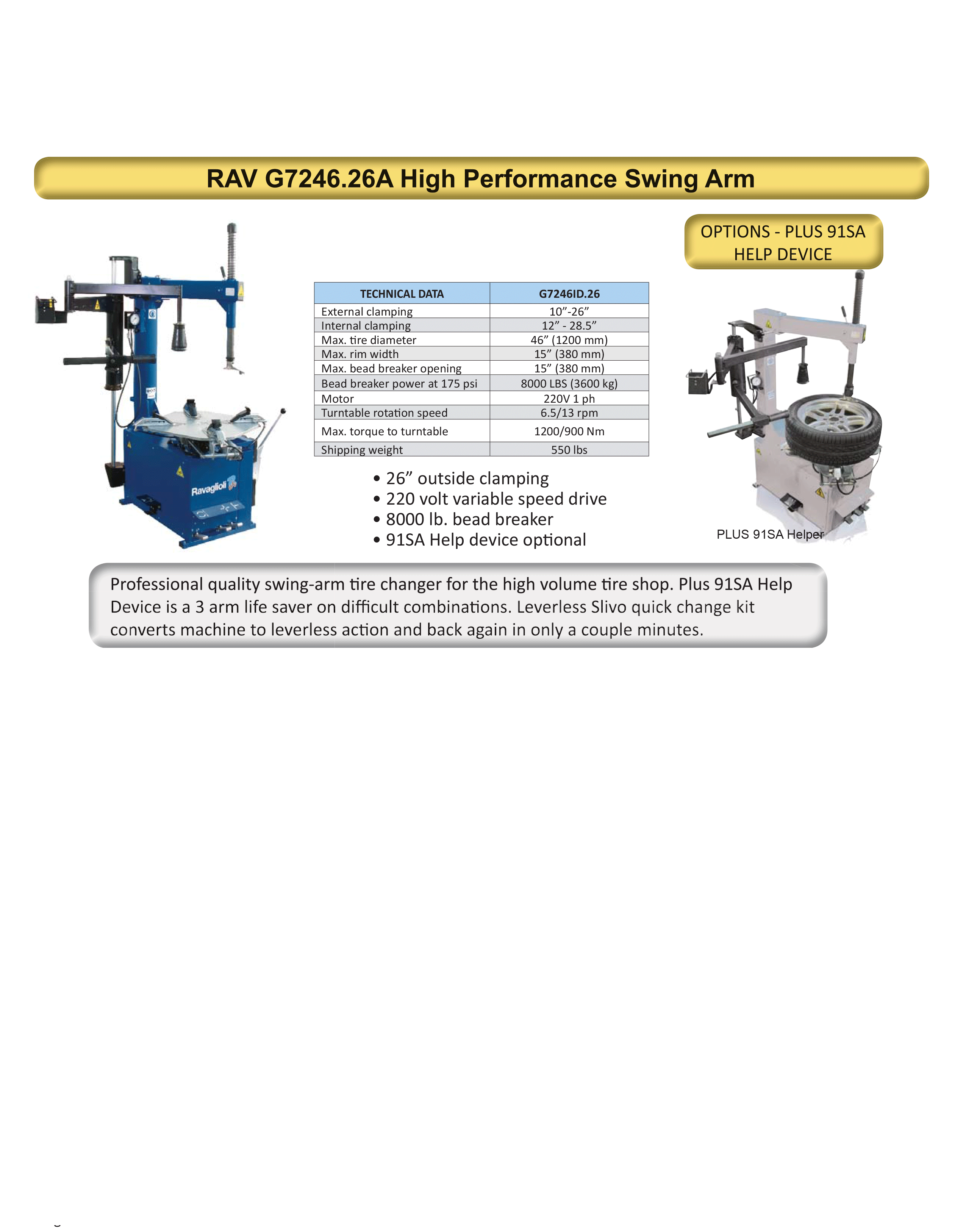

View Brochure


Other Tools

Print  Print
Price: $5862,00 $ $4982,00 $

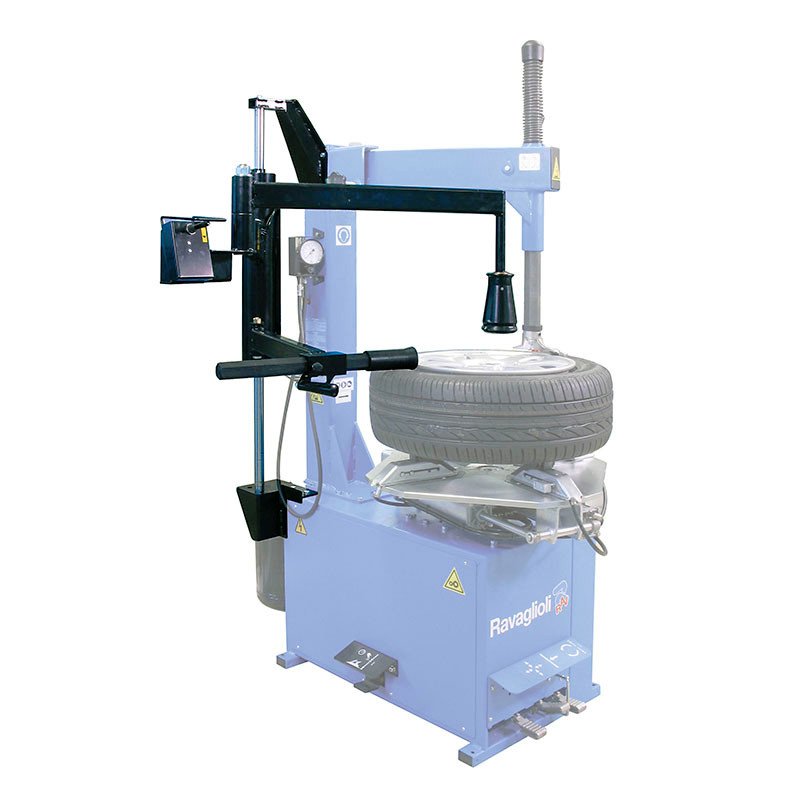

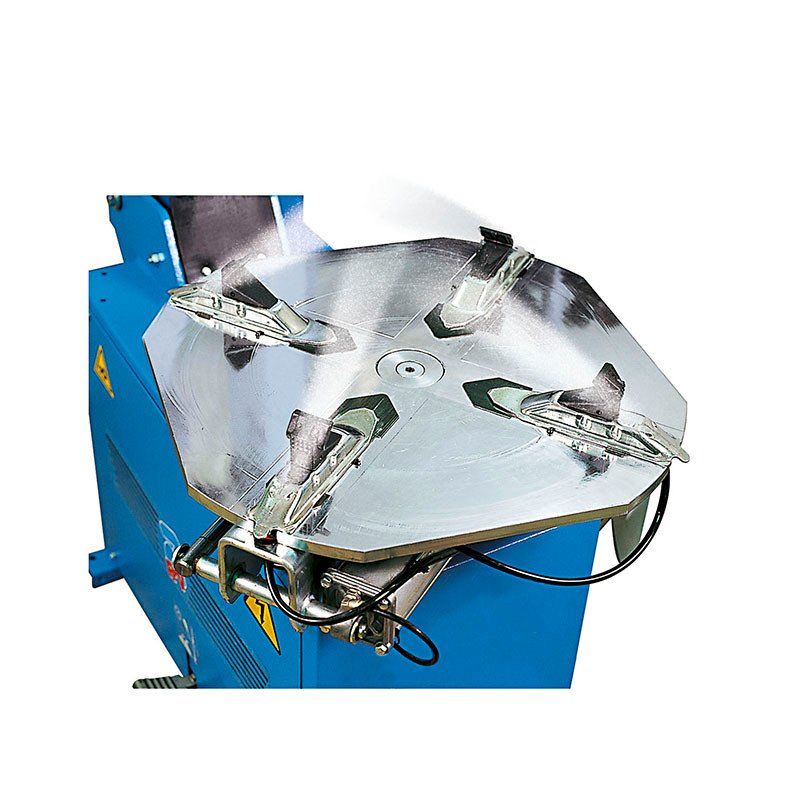

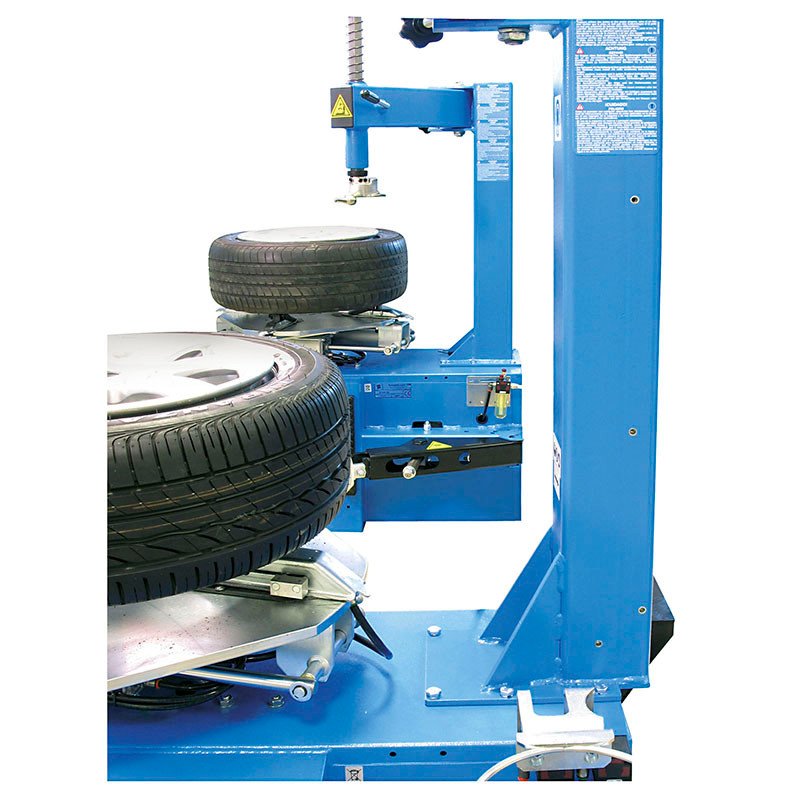

The G7246.26A High Performance Swing Arm Changer is a fast performing swing arm tire changer for the high volume tire center and is often equipped with the optional Helper Arm 91SA. Exclusive 220v drive motor provides needed torque for handling today’s difficult assemblies. True variable speed control allows operator to match turntable rotational speed with the job at hand. The frame is large and reinforced to grant the utmost rigidity to the structure and chucking table. The gear box is installed between two steel plates to avoid flexing during operation. The extra height of the vertical post and tool shaft allow operation on tires to a maximum of 15” (381 mm) width. We at  AETechnologies have supplied this machine to shops that mount and demount  Skidsteer tires. Features of the G7246.26A include:

Technical Data
G7246

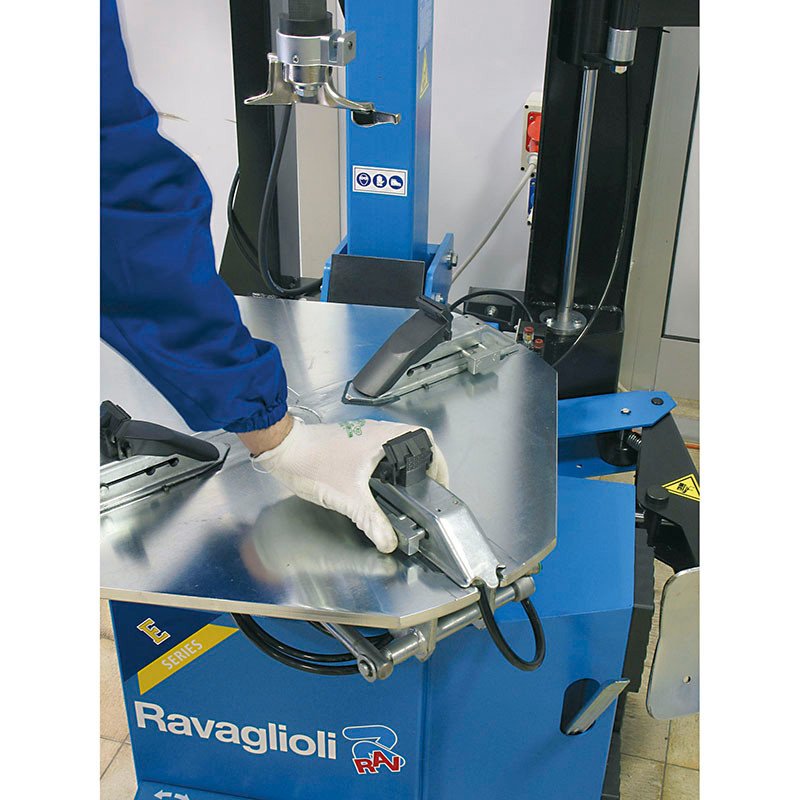

External Clamping
10" - 26"
Internal Clamping
12" - 28.5"
Max Tire Diameter
46" (1200 mm)
Max Rim Width
15" (380 mm)

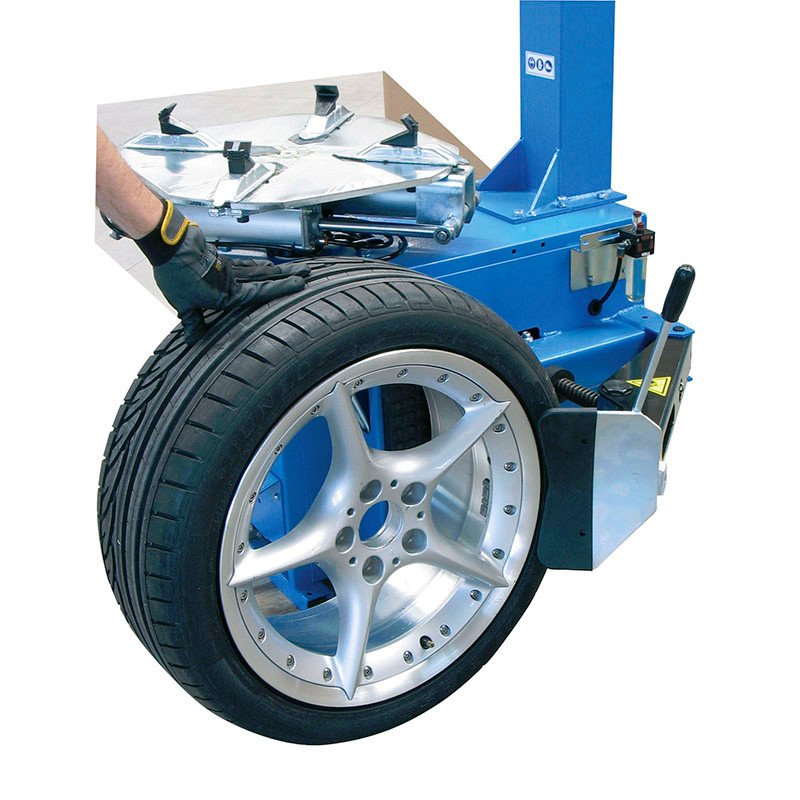

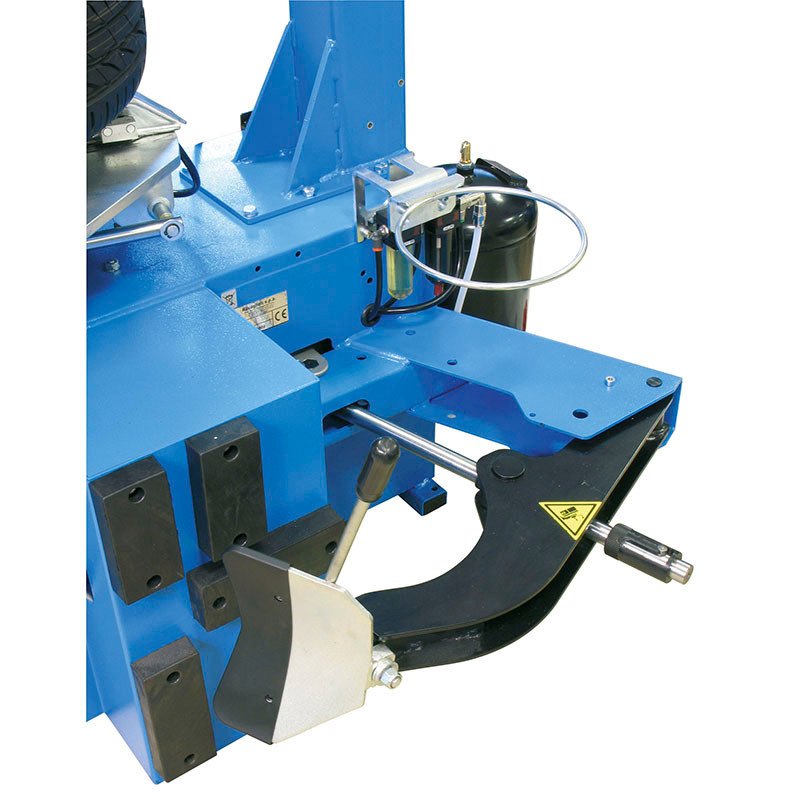

Max Bead Breaker Opening
15" (380 mm)
Bead Breaker Cylinder power at 175 psi
8000 lbs
(3600 kg)
Motor
220V 60 Cycles 1 HP
Turntable Rotation Speed
variable 6.5 to 13 rpm
Max Torque to Turntable
1200 / 900 Nm
Shipping Weight
550 lbs

You can find out why the Ravaglioli G7246.26A is perfect for your shop by talking to the professionals at AETechnologies Inc.

Call 1-877-RING-AET for information or pricing today!
