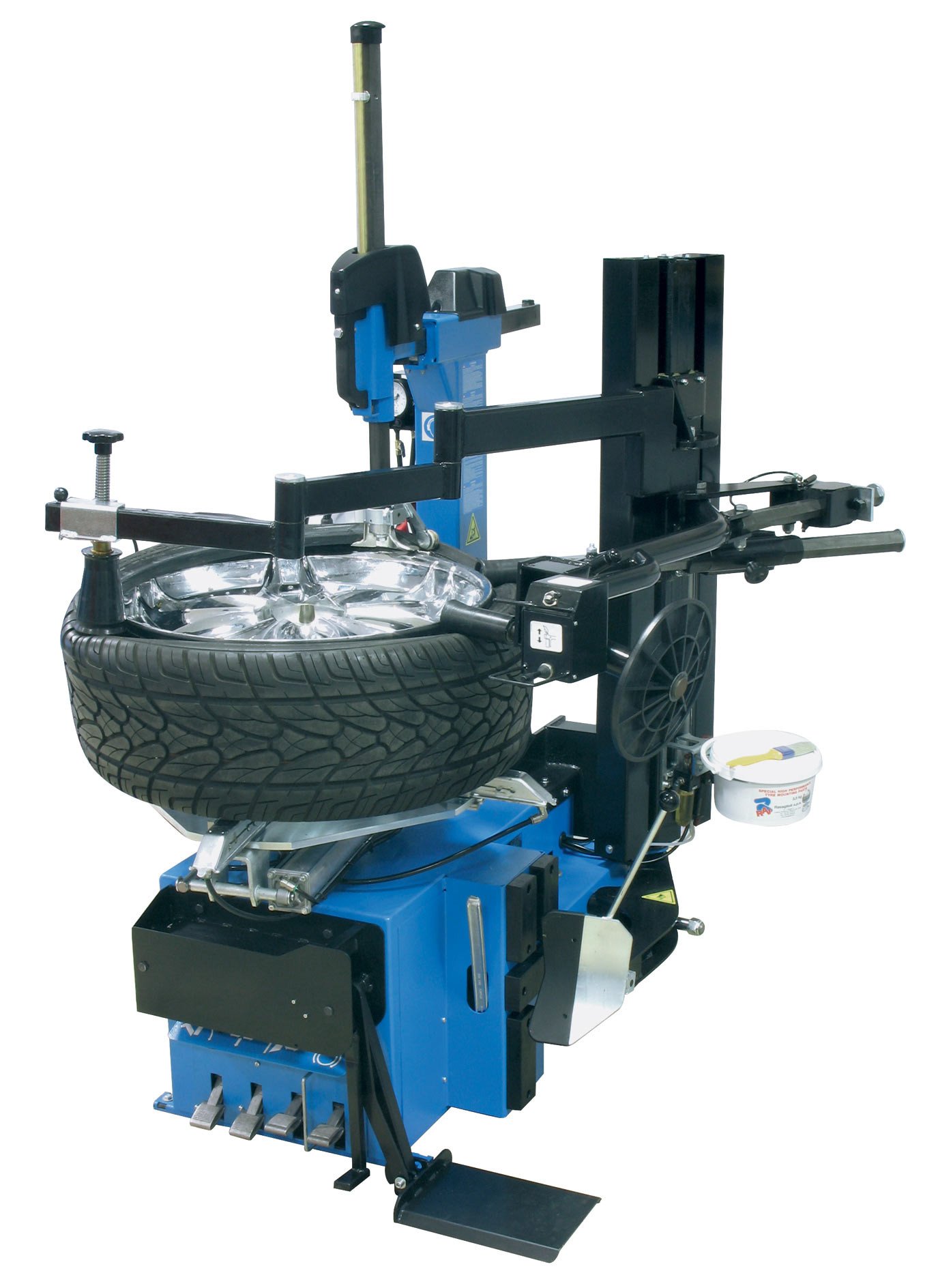

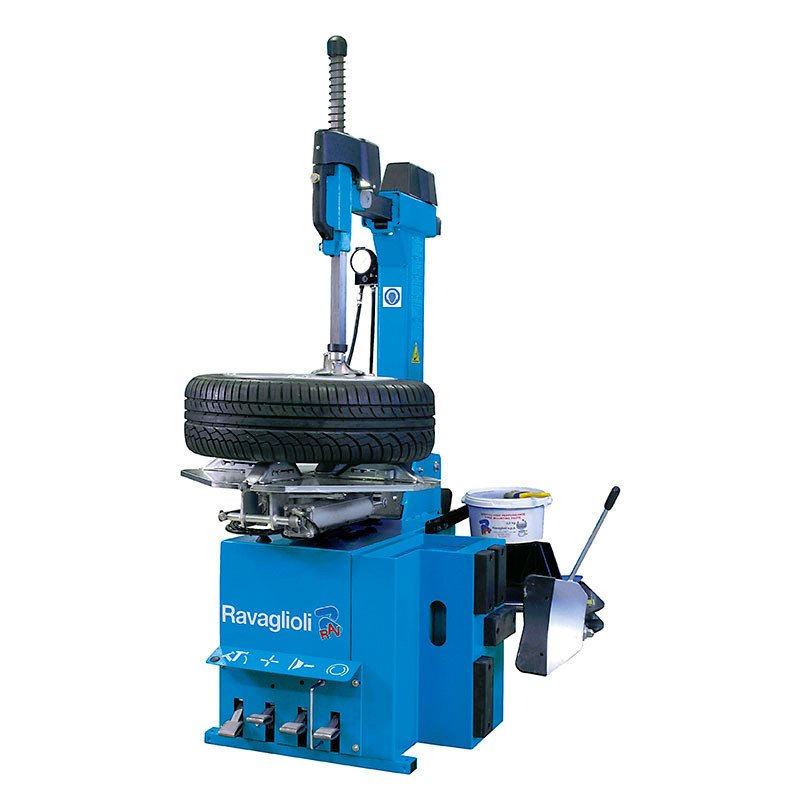

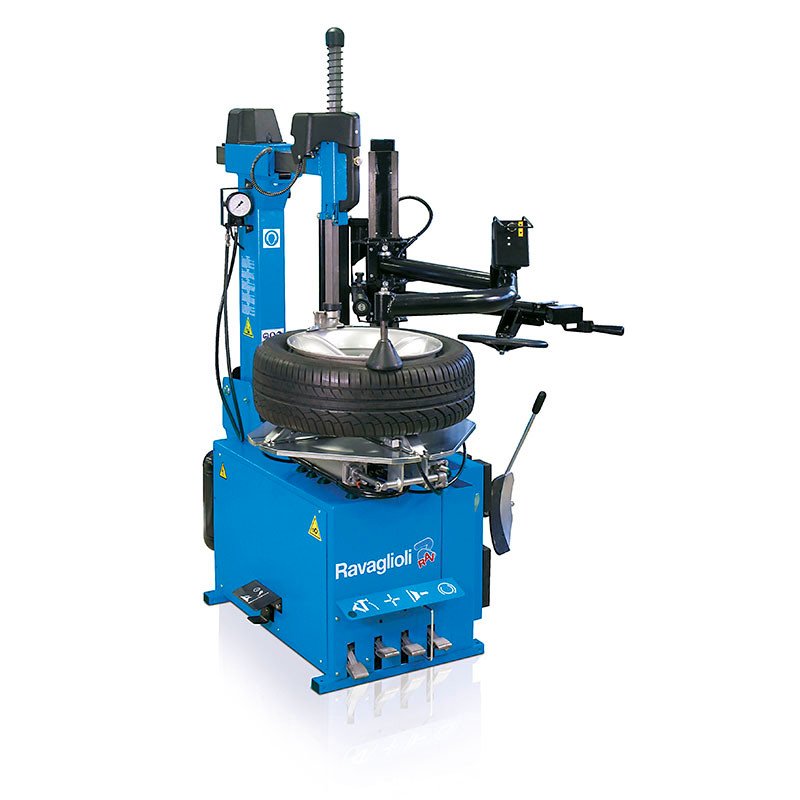

G7645.26 Automatic Tilt-Back Tire Changer

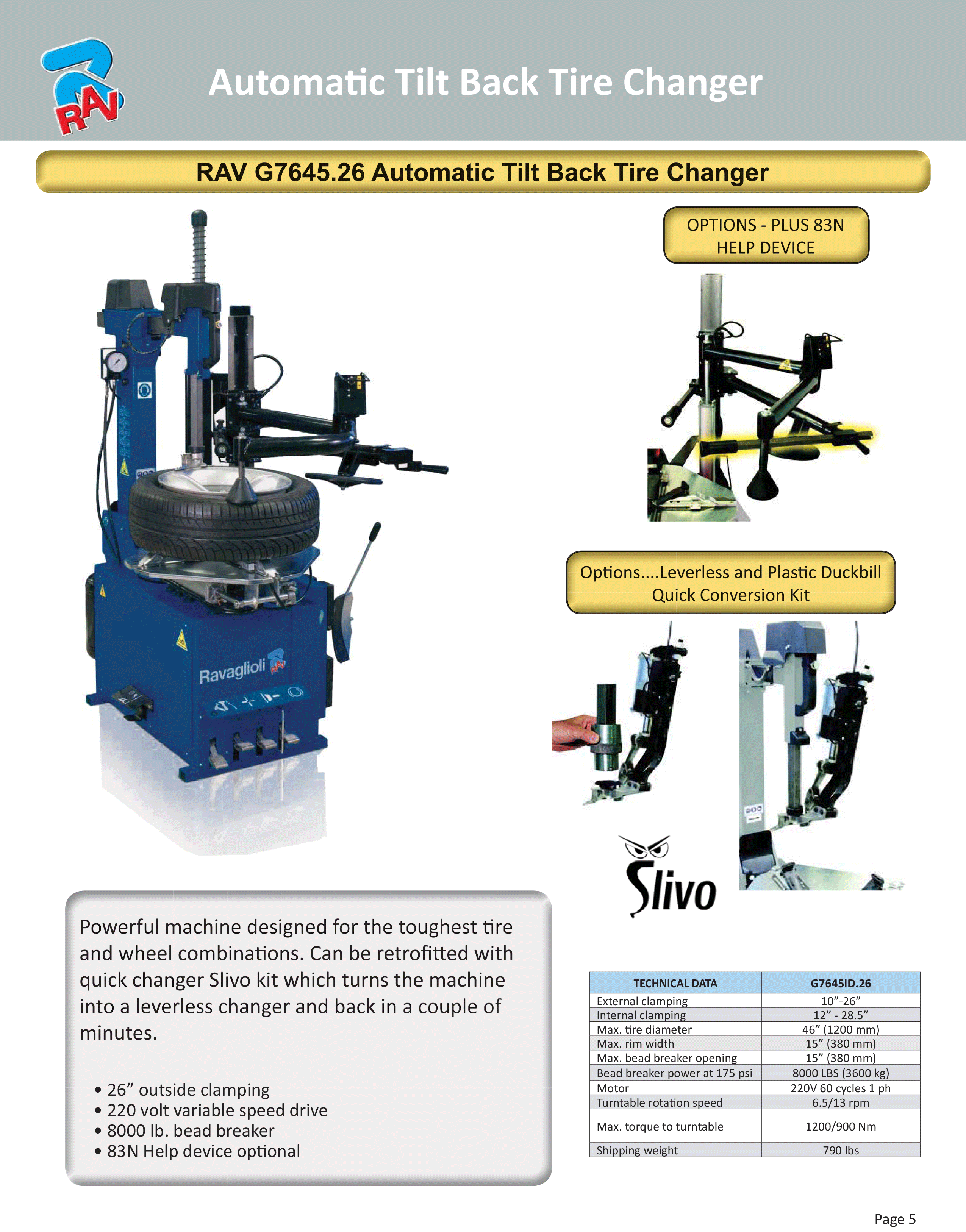

View Brochure
Other Tools
Print
Price: $10494,00 $ $8919,00 $

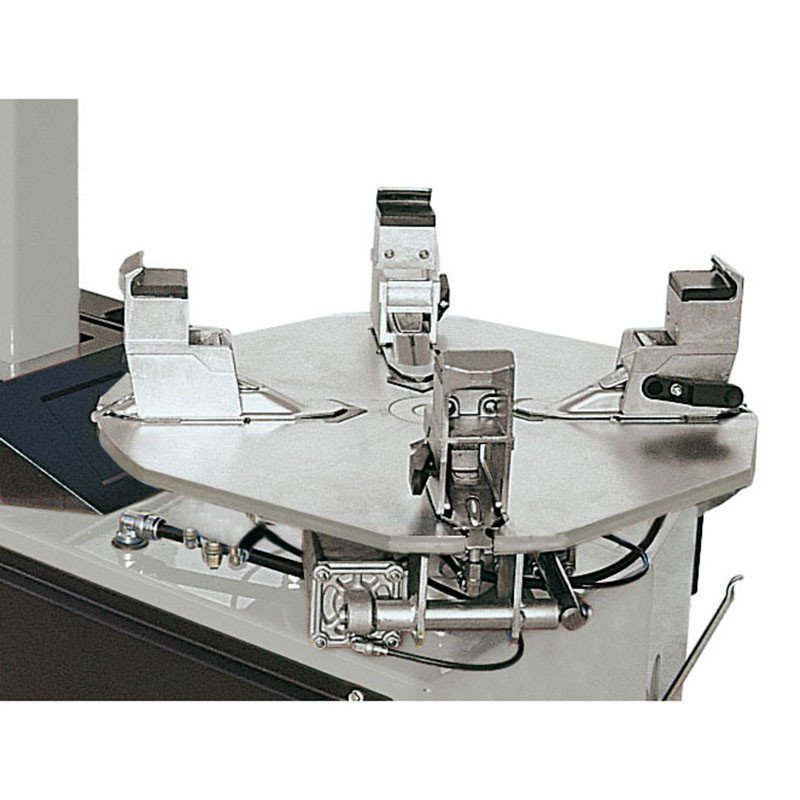

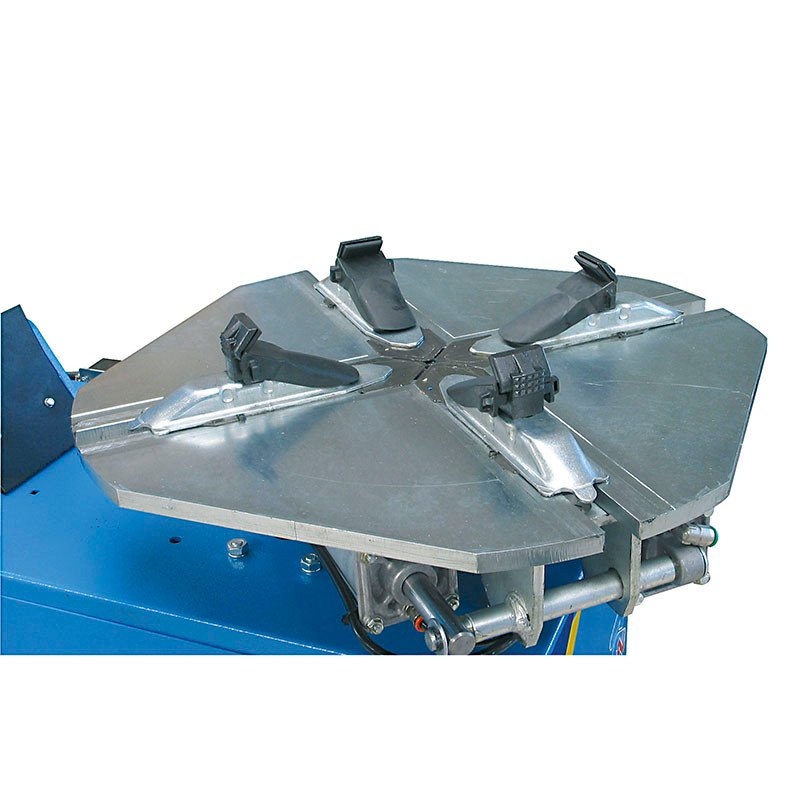

The G7645 AUTOLEVER has a large reinforced frame to grant the utmost rigidity to the structure and clamping table. The gear box is installed between two steel plates to avoid flexing during operation. Designed for the toughest tire and wheel combinations.

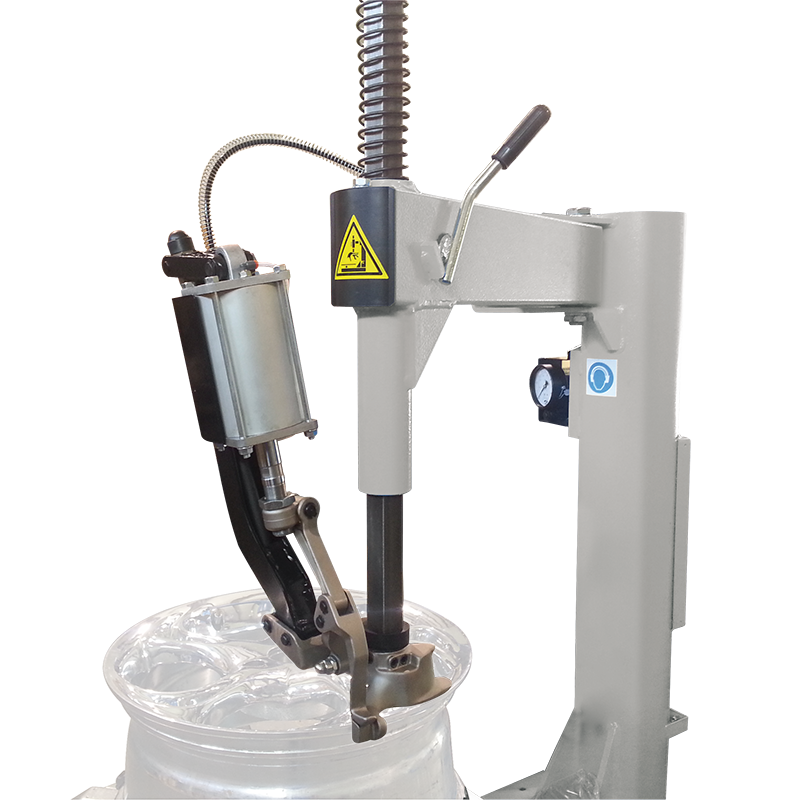

The extra height of the vertical post and tool shaft allow operation on tires to a maximum of 17” (431 mm) width. Features of the G7645 Automatic Tilt Back Tire Changer include:
|
Technical Data
|
|
G7645.26
|
| External Clamping |
10" - 26"
|
|
| Internal Clamping |
12" - 28.5"
|
|
| Max Tire Diameter |
45"
|
|
| Max Rim Width |
16"
|
|
| Max Bead Breaker Opening |
17"
|
|
| Bead Breaker Cylinder power at 175 psi |
8,000 lbs
|
|
| Motor |
220V 60 Cycles 1hp
|
|
| Turntable Roation Speed (rev/min) |
variable from 6.5 to 15 rpm
|
|
| Max Torque to Turntable |
1200Nm
|
|
| Shipping Weight |
790 lbs
|

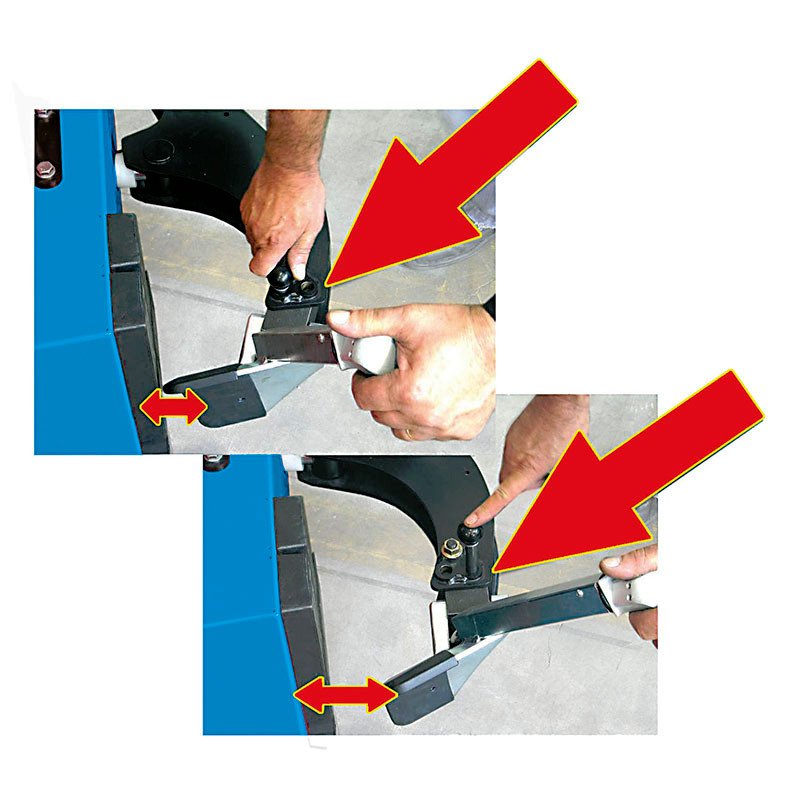

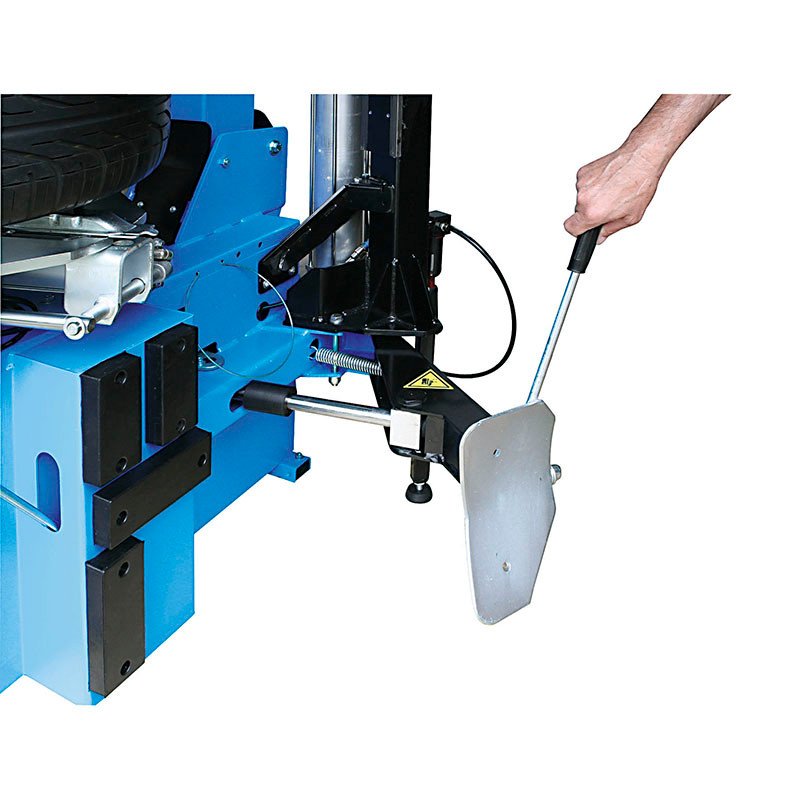

The G7645 Automatic Tilt Back Tire Changers bead breaker can be adjusted to work with extreme rapidity. The jointed and shaped blade facilitates bead breaking and has a galvanized cylinder with double acting operation.
