GTL2.120H Standard HD Truck Balancer

Other Tools

Print  Print
Price: $9445,00 $ $8028,00 $

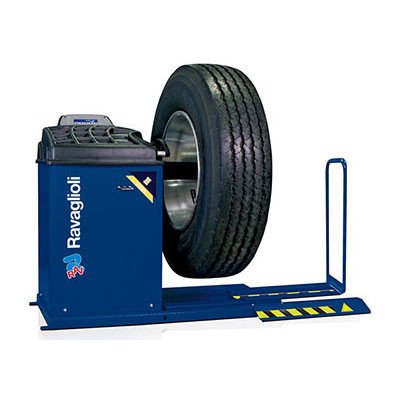

This rugged truck wheel balancing machine is a workhorse with standard digital display and integrated pneumatic lift.

The GTL2 offers the same precision and rugged reliability as the GTL4 series. The drive system is also DC powered and the integrated wheel lift used for the GTL4 is also featured on the GTL2. This more basic machine uses a smaller monochrome LCD display and the entry of data is manual through the keypad. This lower cost machine is also very adept at balancing smaller wheels such as automotive and light truck. A high quality balancer with more basic features and an attractive cost. Standard with medium duty budd centering cone, backing plate spacer, wingnut, calibration tool, and width caliper. Other accessories for trucks, cars, and light trucks are available.

The famous RAVaglioli quality is present in our entire range from entry level to top of the range models.
Perhaps it is time you moved up to RAV.

Features - GTL2.120HDC Standard HD Truck Balancer
  • Deluxe HD software for trucks, cars, and light trucks
  • Auxiliary air actuated brake system
  • Simple 5 button key pad
  • Keypad entry of distance and diameter
  • Standard with integrated pneumatic wheel lift
  • Standard with Budd medium duty cone, backing spacer, and wingnut
  • Automotive accessories including lug mount kits available
  • Light truck and one ton accessories including lug mount kits available
  • Medium duty truck lug mount kits available

Rim diameter 10-26" automatic/larger sizes entered thru keypad
Rim width 1.5"-22" automatic/larger sizes entered thru keypad
Max tire/wheel weight 440 lbs.
Degree of accuracy Within 1 gram
Rotation speed 80 rpm for truck/100 rpm for car
Power supply 115v 1ph (converted to 24vDC)
