RAVAGLIOLI 12,000 lbs Two Post Lift


Other Tools

Print  Print
Category: Two Post Lifts
Price: $8804,00 $ $7483,00 $

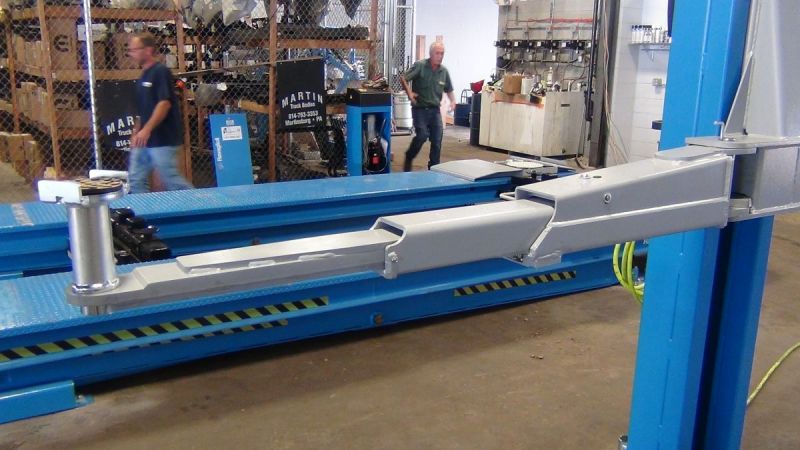

The KPH370.50 standard version lift has two long two-stage and two shorter three-stage arms. The arm’s extensions slide on spring mounted rollers allowing easy use and a steady load. The LIKU version offeres EXTRA long three-stage arms ideal to lift long wheel base vehicles like the Ford Transit van and Mercedes Sprinter van. The 3rd extending member of each arm is constructed of solid steel (not a tube). This will maintain low arm height at rocker panels of cars without crushing/"biting" the panel. The lift design incorporates pulling pistons that allow the column and carriage to be more compact in shape offering more distance between columns without consuming more overall space. Pulling cylinders,although more expensive to produce,reduce stress on seals creating longer live. Other features of the KPH370.50 include:

  • Overall height of the standard version lift is 164" or 13.6'
  • 78" lifting stroke of piston
  • Minimum pad of 4 3/4" for the asymmetrical/symmetrical lifting of vehicles
  • Non-slip rubber lifting pads with spin up adapters won't damage vehicle pick up points
  • Heavy duty weight capacity of 12,000 lbs.
  • Fully galvanized individual strands form the air craft quality equalization cables
  • Mechanical safety locks with automatic engagement for maximum safety when lift is raising
  • Single side safety lock release
  • Extra resistant column design with exclusive patented 10+8 bend columns
  • Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor. Self-locking conical design
  • 3HP 220V/single phase power unit standard, 220V/3 phase power unit available (special order)
