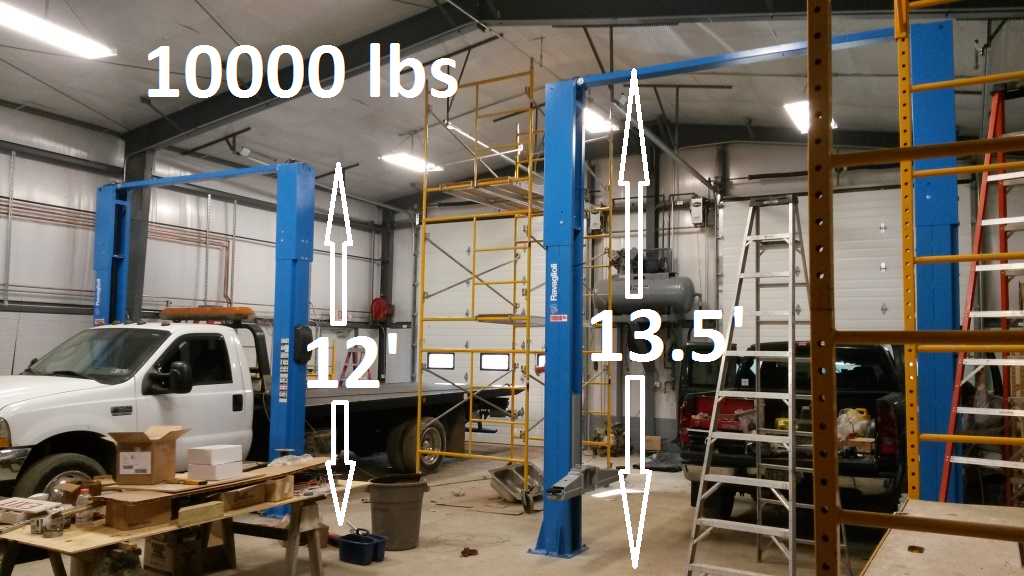

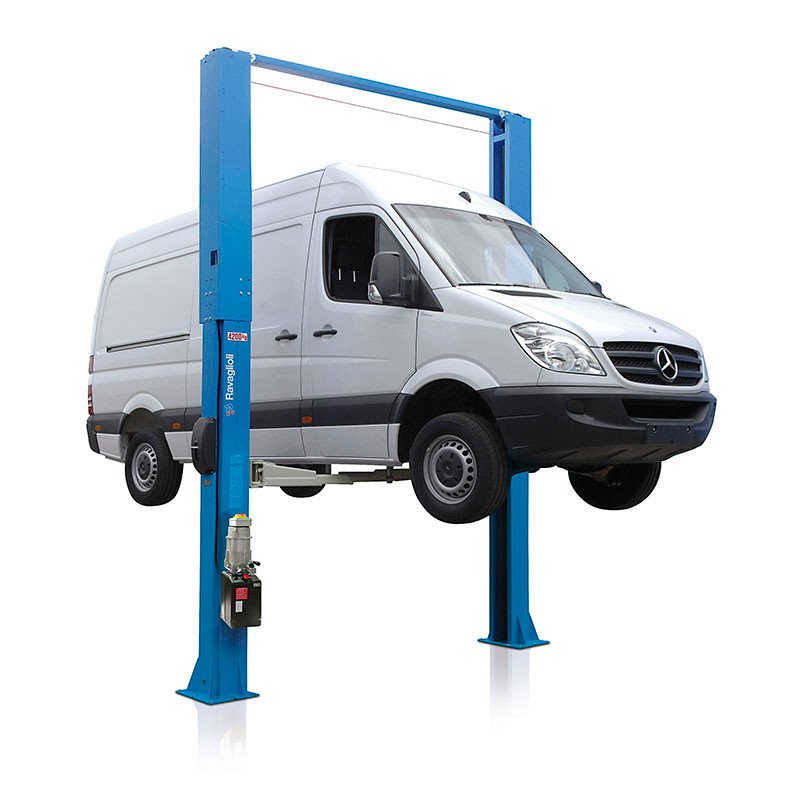

Tall Sprinter Vans require a taller lift.Show here is a 13.5' high 10000 2 post lift with long LIKU arms

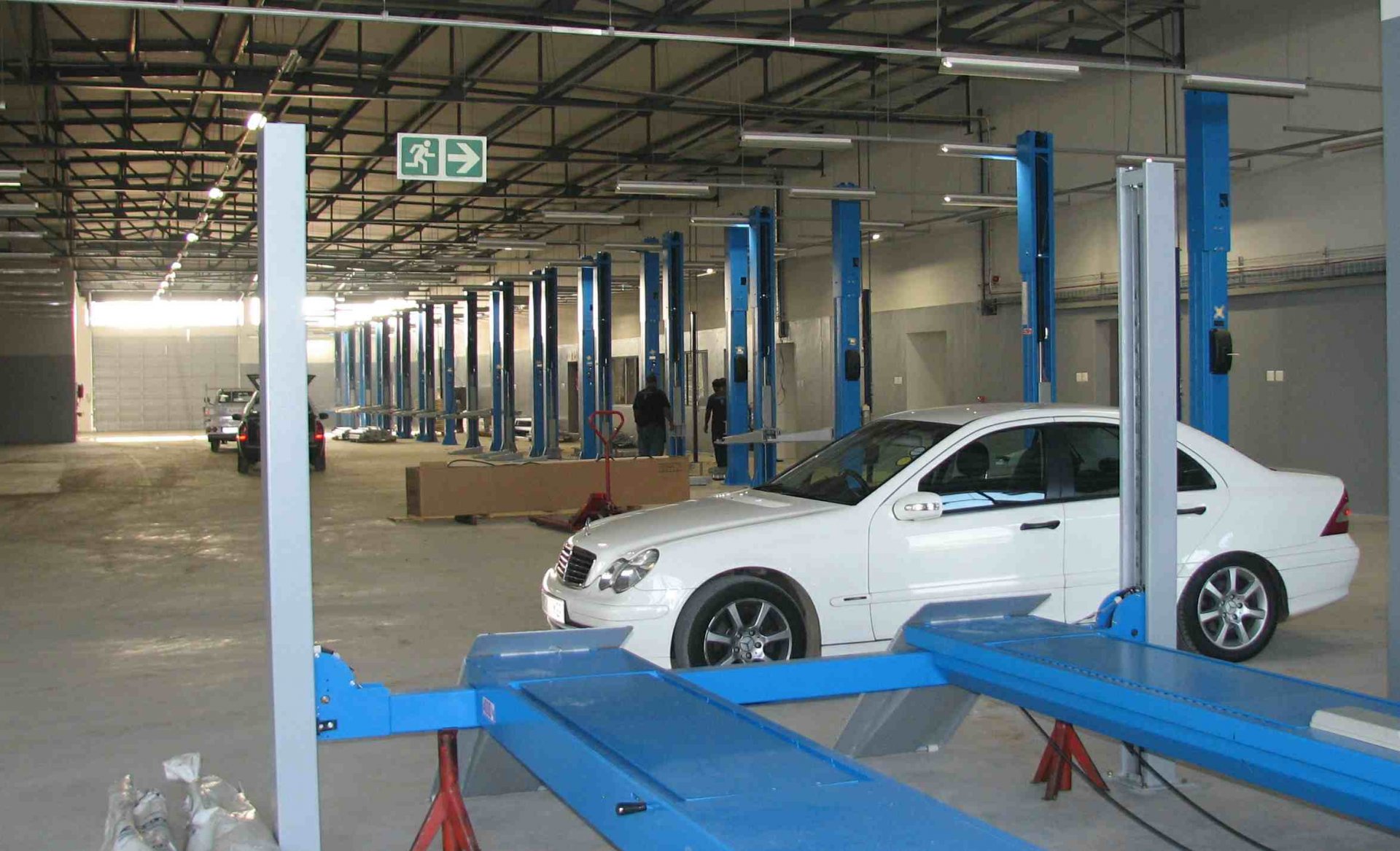

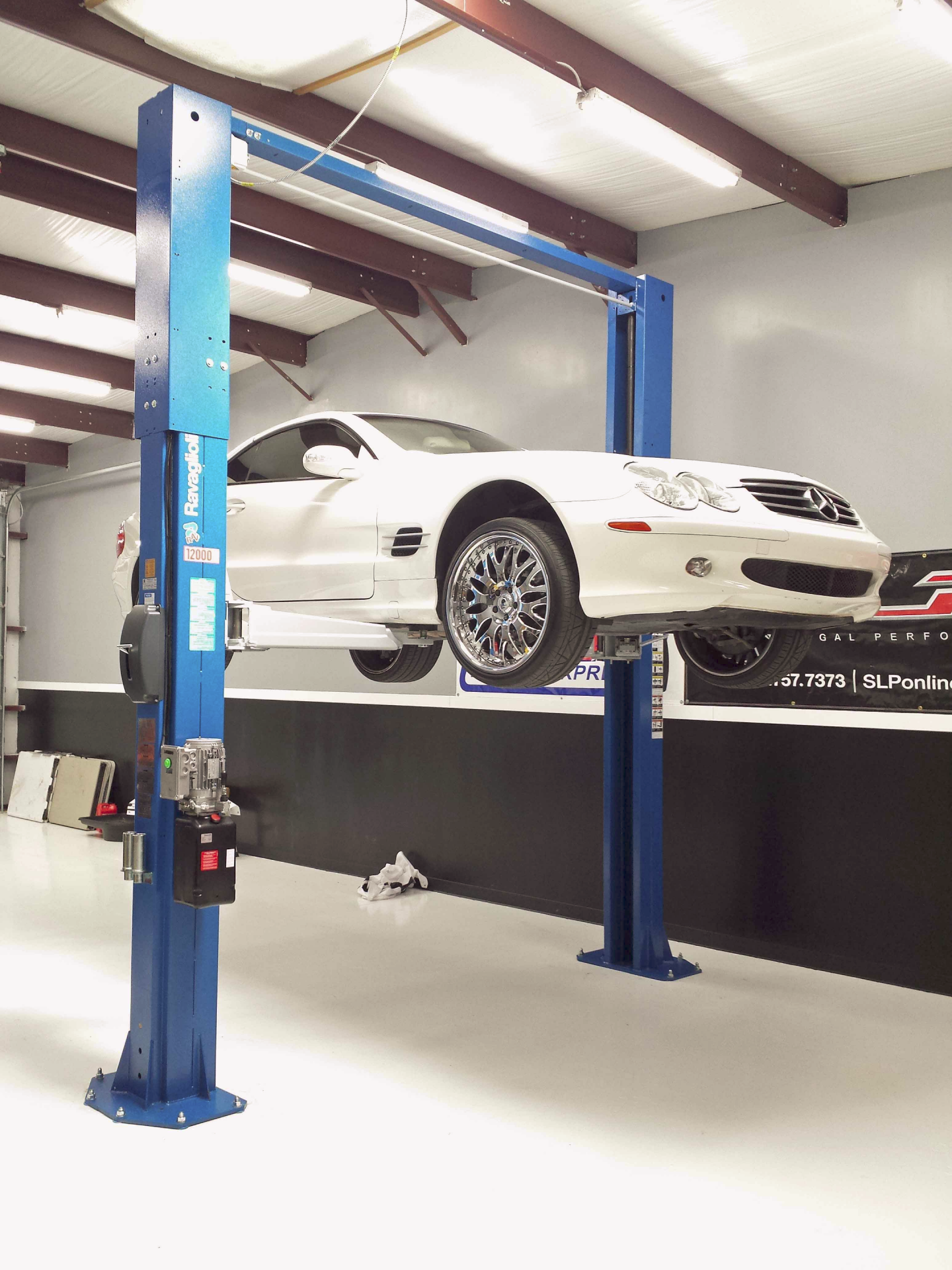

12000 lbs 2 post usually will not work with low clearance cars such as this Mercedes

12000 lb 2 post usually will not work with low clearance cars such as this Mercedes

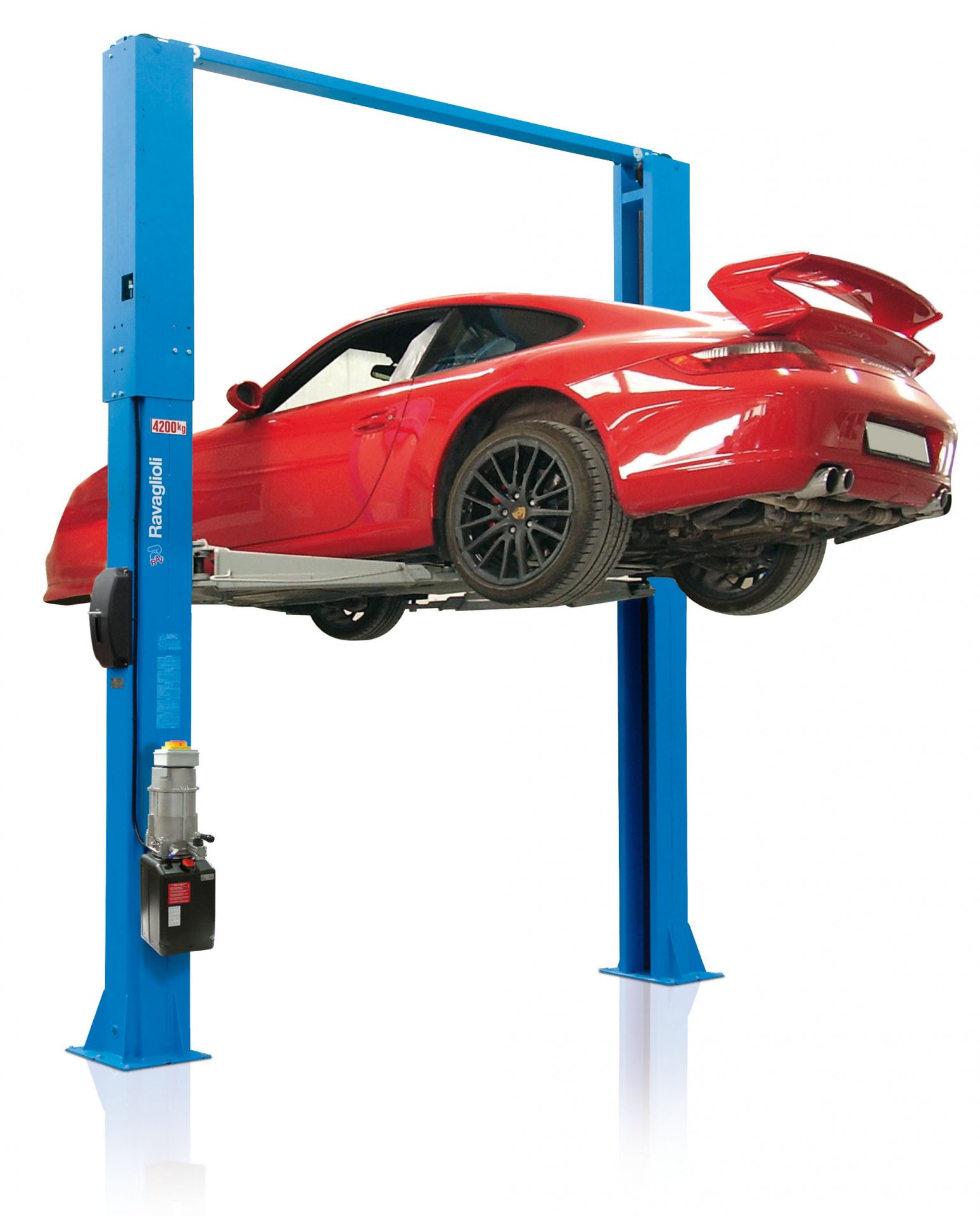

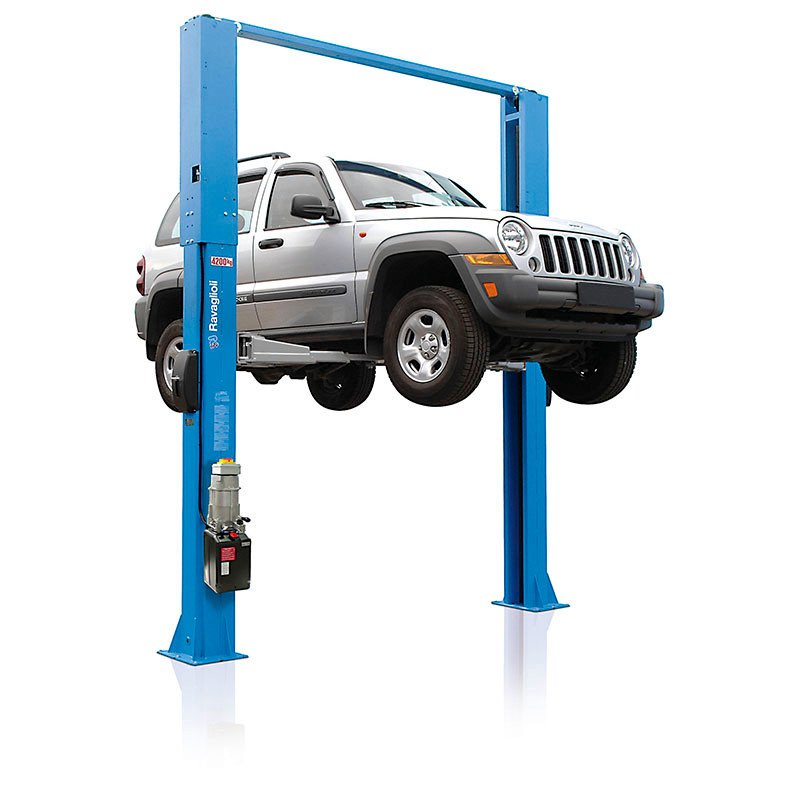

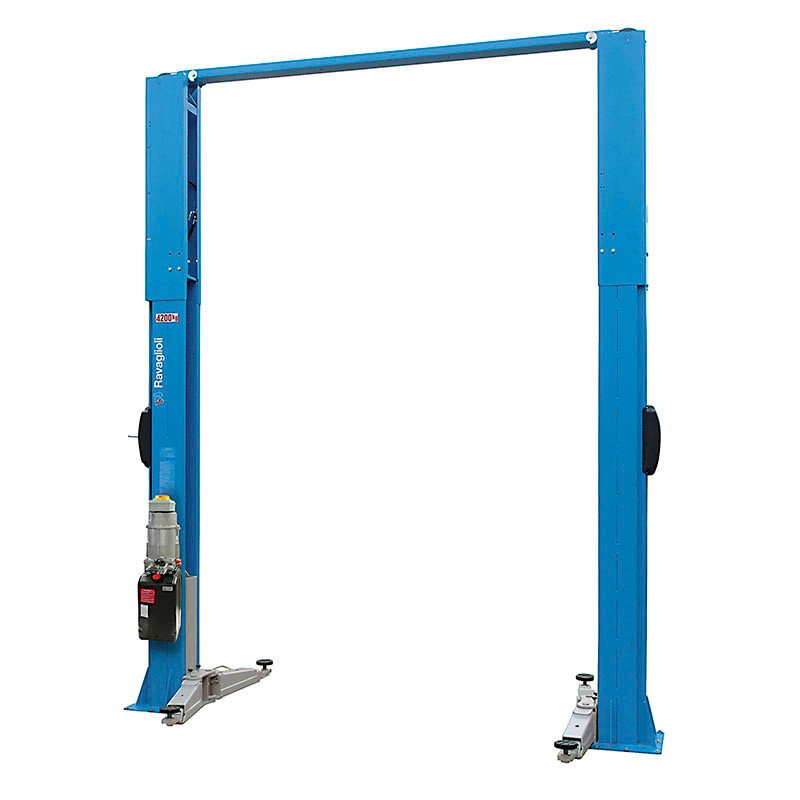

RAVAGLIOLI 10,000 lbs Two Post Lift

View Brochure

KPH370.42

RAV USA Lifts 2017

Other Tools

Category: Two Post Lifts

Price: $5558,00 $ $4724,00 $

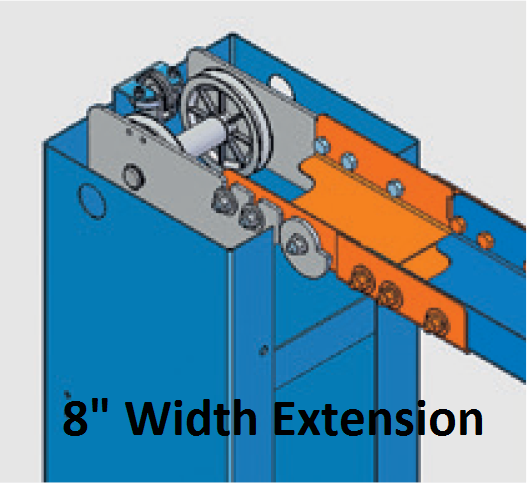

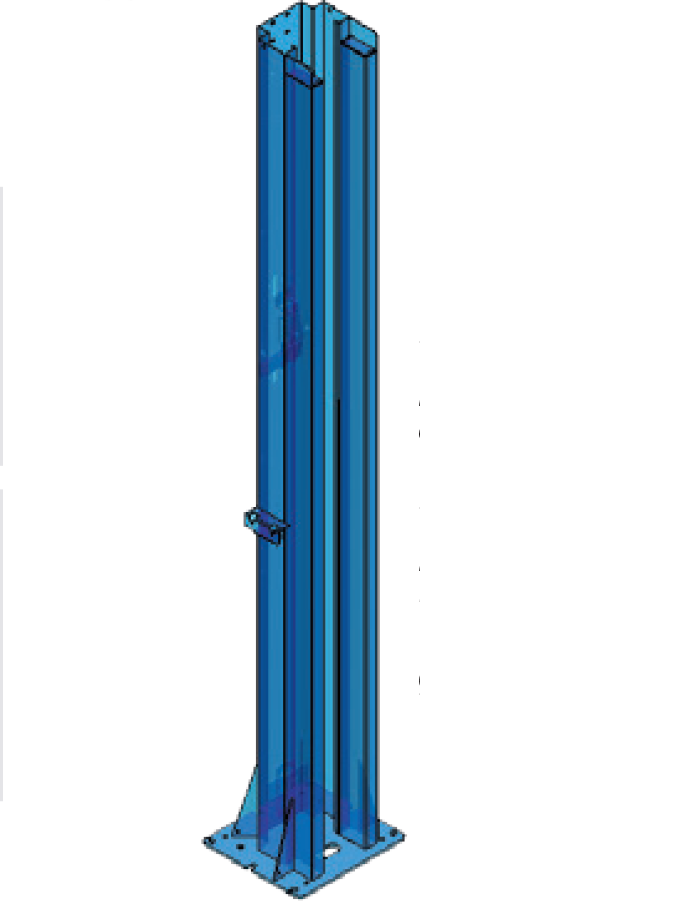

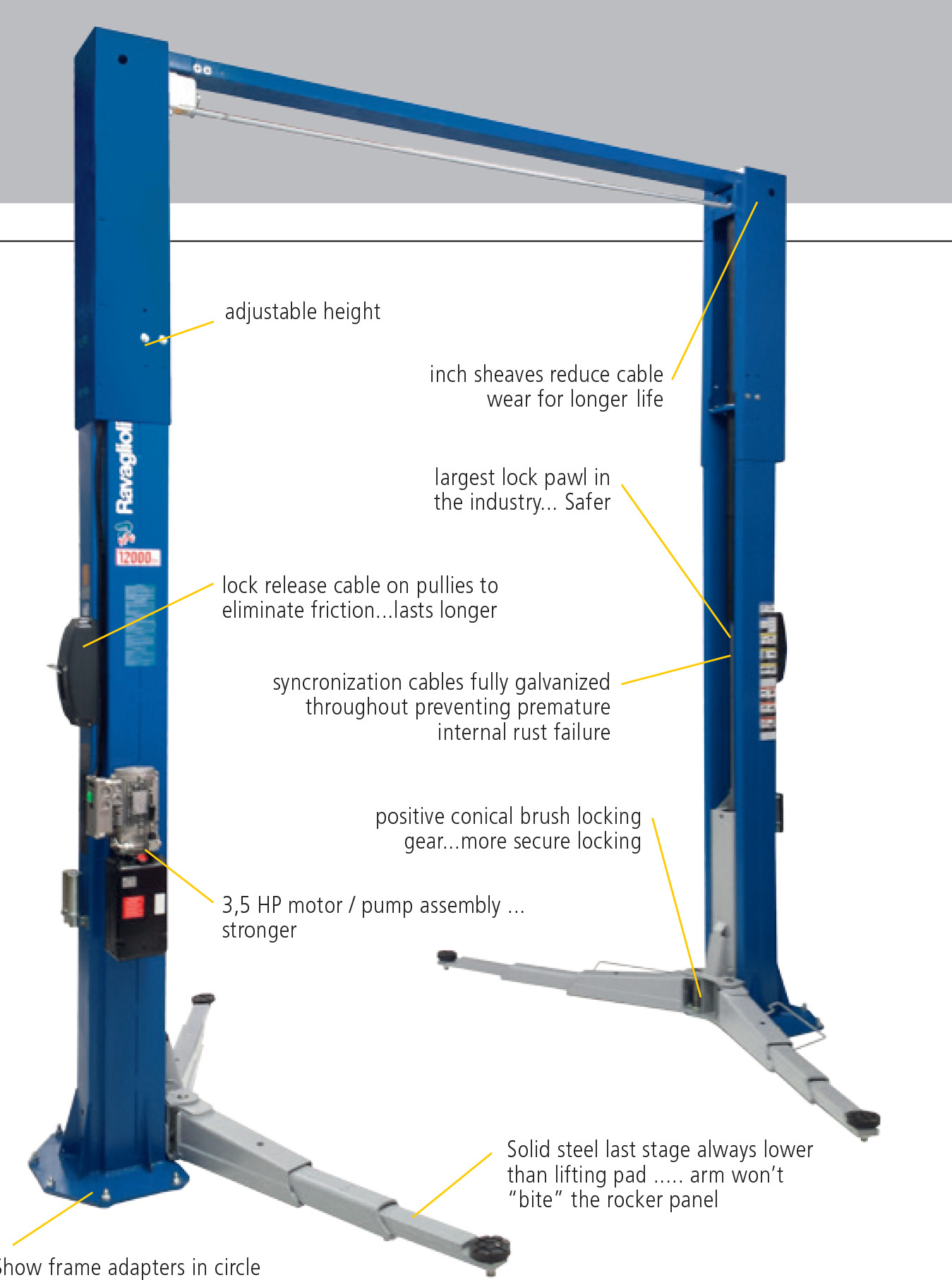

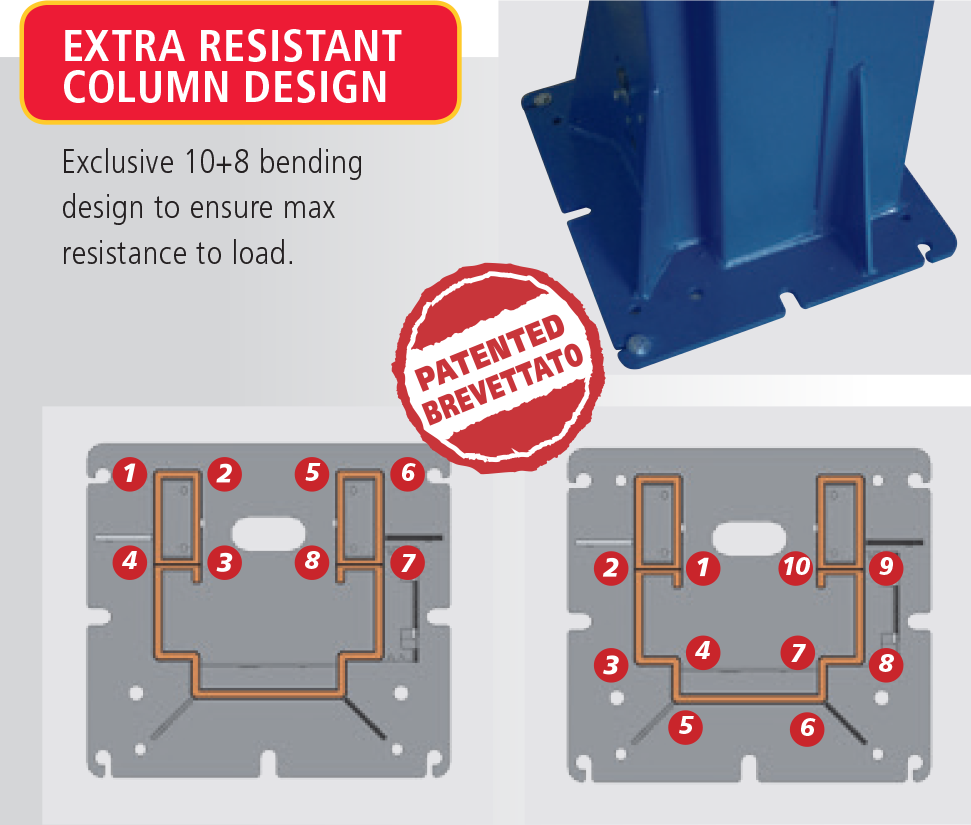

The KPH370 Two Post Lift is the only 10,000 lb lift on the market with double wall column construction. Each column is constructed with 20 strength increasing bends making it the strongest column on the market. There is always perfect synchronization between carriages regardless of the load distribution. Each cylinder is equipped with a safety check valve to prevent a carriage descent in case of hydraulic line fracture. The lift comes standard with three-stage short front arms and two-stage long rear arms which provide asymmetric and symmetric lifting of cars, trucks, SUVs and vans. Also available are 4 three-stage arms in the LIKU version that allow more symmetrical lifting and the lift columns can be set 8" wider. The KPH370 also features:

Synchronization cables assure the leveling of the two carriages and are fully galvanized throughout preventing premature internal rust failure
Each column features a maintenance-free lifting cylinder
Adjustable column height for the standard model between 142" and 146". For the tall version the measurements are 160" and 164" (13.5' version)
Mechanical safety latches automatically engage to ensure maximum safety when lift is in raised position
Single side safety lock release

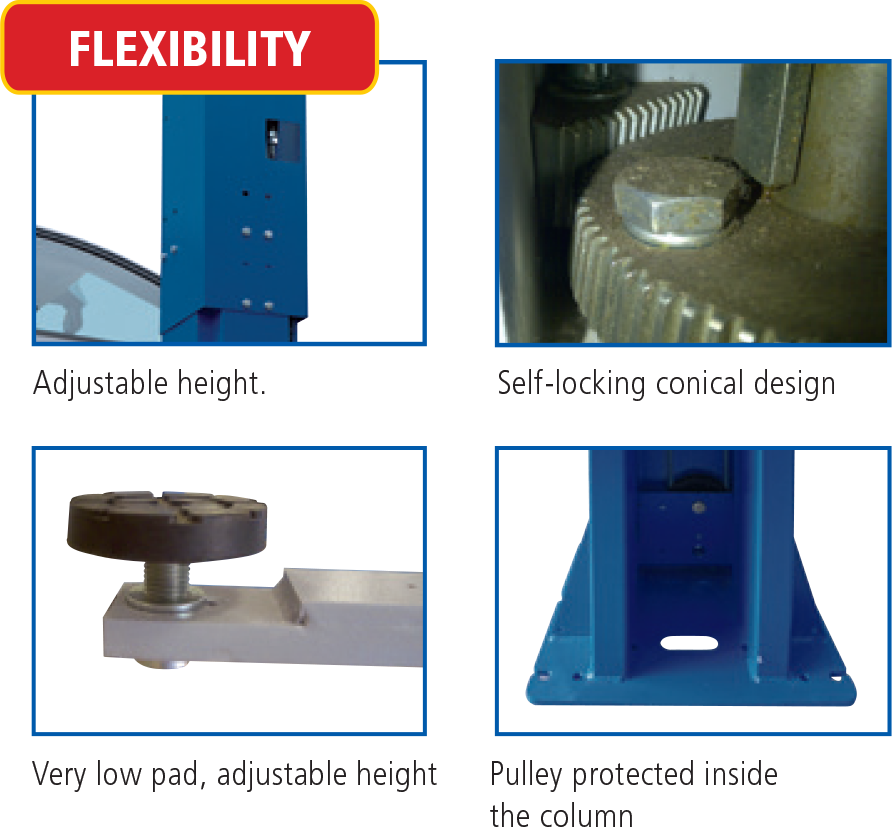

Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor. Self-locking conical design
Very low pad of less than 4", adjustable in height
10,000 lb. capacity
3HP 220V/single phase power unit standard, 220V/3 phase power unit available (special order)

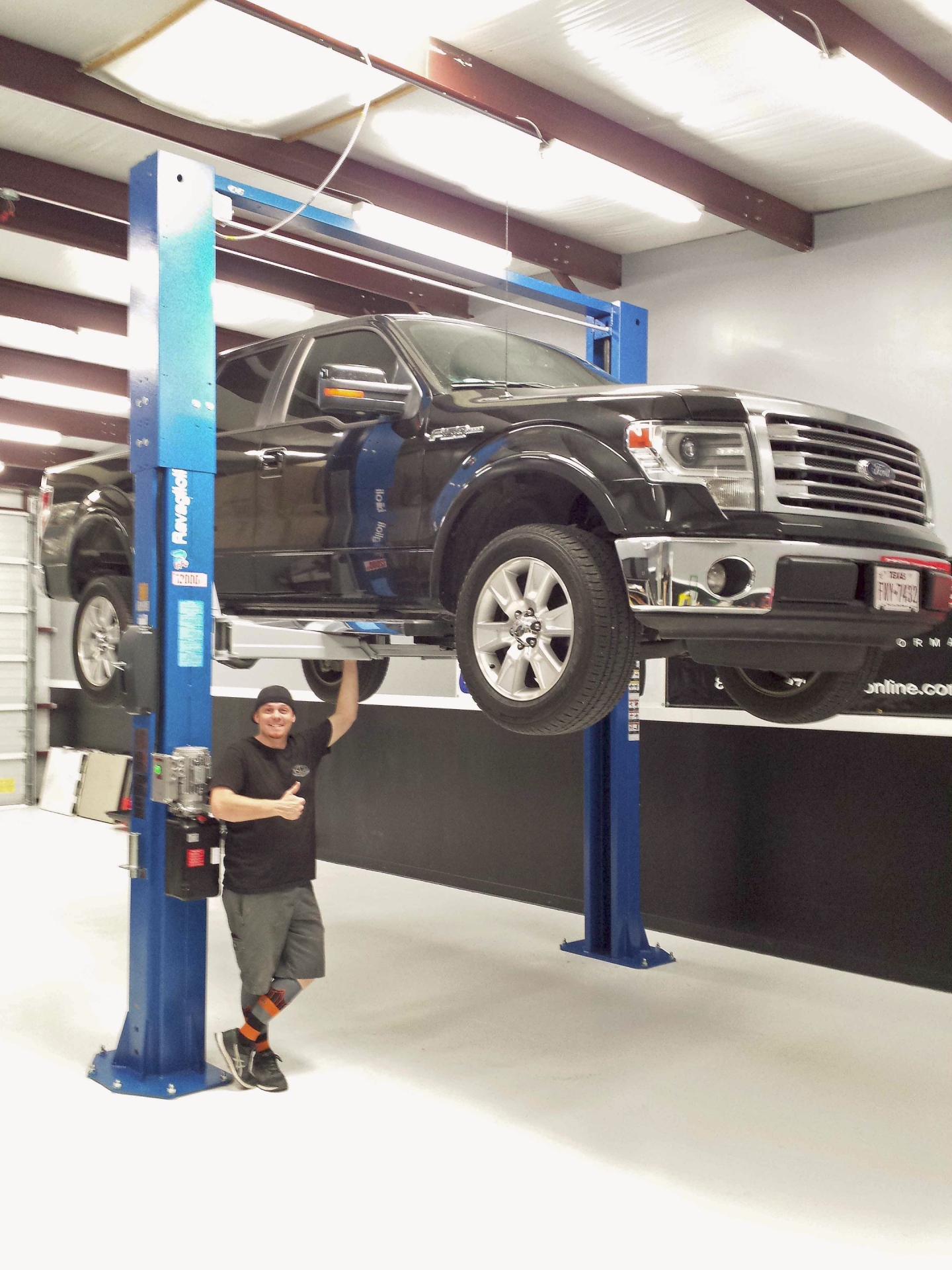

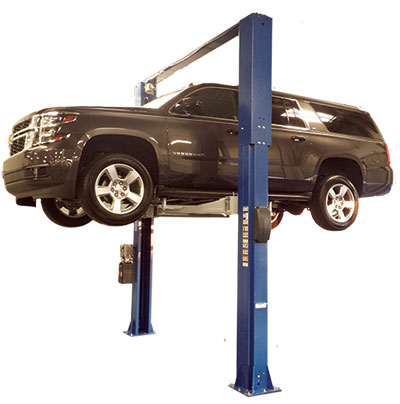

Two Post Lift Photos In Gallery Show Multiple Product Variations.
