Rav Equipment - Ravaglioli KPH 370.55 KU 10,000 lbs Two Post Lift

570-639-2344 1-877-RING AET

Manufacturers Images

F250 lifted with 4 symmetrical arms that extend tri-fold if needed

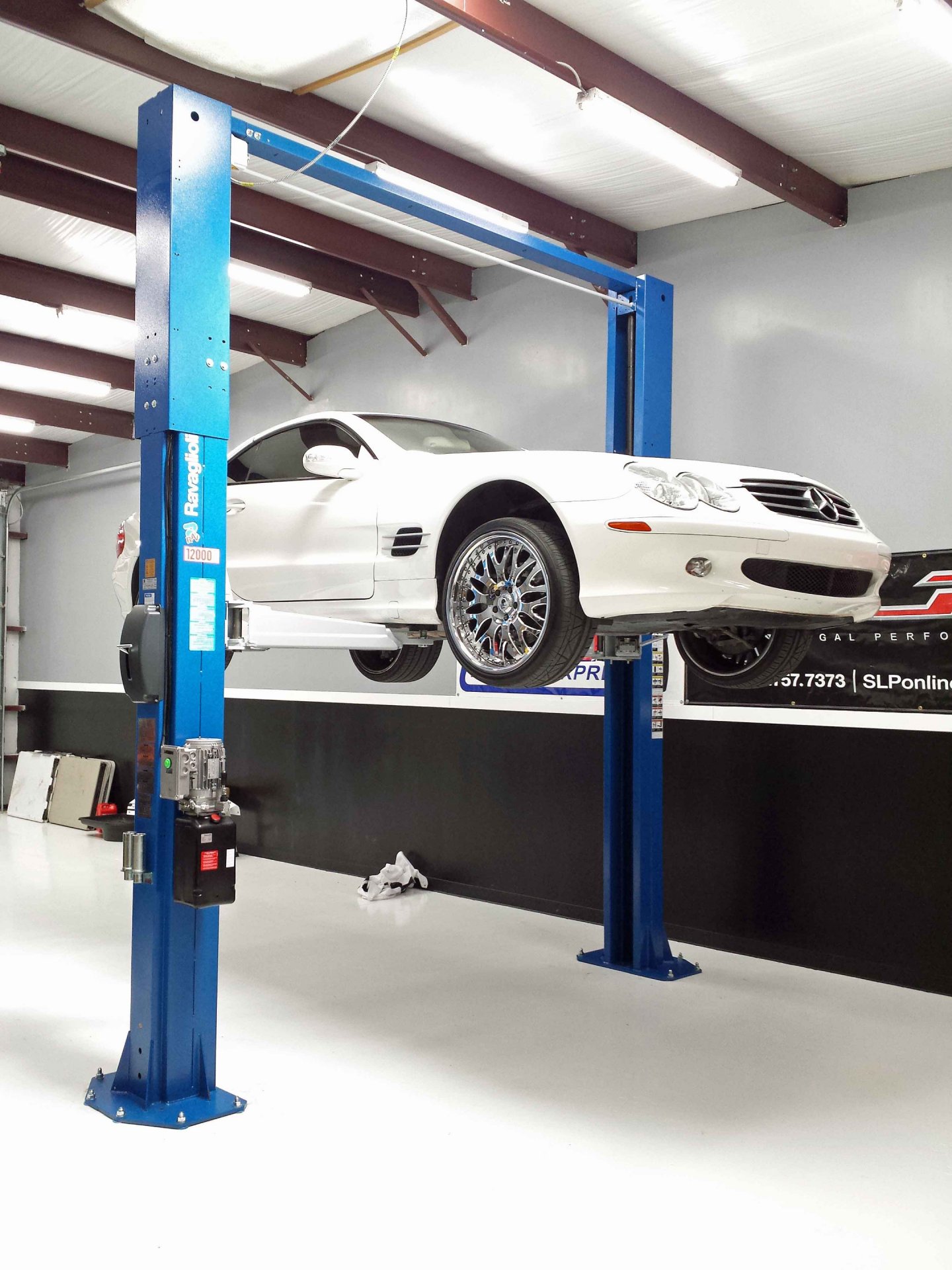

Arms of the Rav lift will fit nicely under the rocker panels of this Mercedes

RAVAGLIOLI 15,000 lbs Hydraulic Heavy Duty Two Post Lift

View Brochure

KPH370.55

RAV USA Lifts 2017

Other Tools

Category: Two Post Lifts

Price: $13165,00 $ $11190,00 $

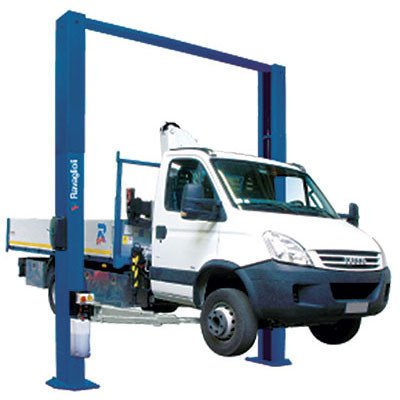

The KPH370.55 commercial vehicle series two post lifts are ALI approved and are available in 15,000LB and 18,000LB capacities. These RAV heavy duty two post lifts meet the highest European CE and ALI (American Lift Institute) standards. Like all RAV electro-hydraulic lifts the cylinders are manufactured by us so that quality is maintained and longevity is assured. Only the finest Italian steel plate is used in the manufacturing of our structure and superior RAV design and engineering insure a safe and powerful lift system. Arms, adapters, and carriages are usually the first components to show excessive signs of wear on a low quality lift. RAV takes important steps to insure that our components stay working correctly and safely for years to come.

The KPH370.55LIKU has four 3 stage arms that extend to 71" each, perfect to handle those long wheelbase vehicles as well as smaller vehicles such as cars with low clearance. The LIKU arms retract to 28" lenght
4 3/4" minimum pad clearance when lowered
80" rise to the top of the pad
Perfect synchronization of carriages regardless of load distribution
Fully galvanized cables throughout preventing premature internal rust failure
Safety valve to prevent overloading
Single side safety lock release

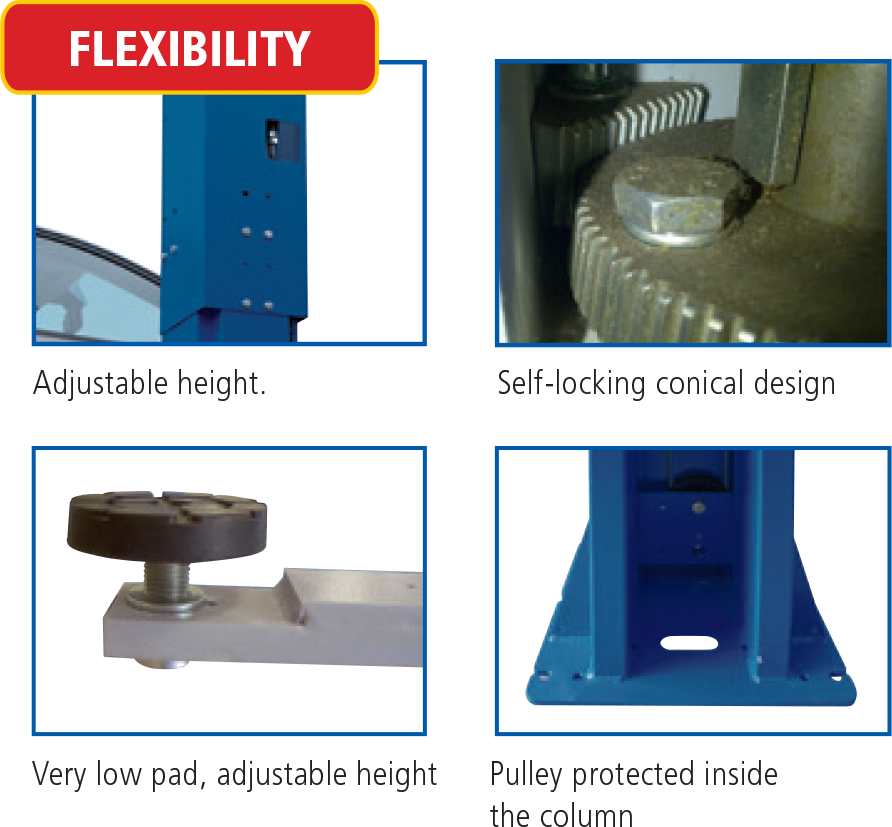

Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor. Self-locking conical design
15,000 lb. capacity
3HP 220V/single phase power unit standard, 220V/3 phase power unit available (special order)
