Manufacturers Images KPH370.70 18,000 lbs Two Post Lift

RAVAGLIOLI 18,000 lbs Two Post Lift


Other Tools

Print  Print
Category: Two Post Lifts
Price: $21112,00 $ $17945,00 $

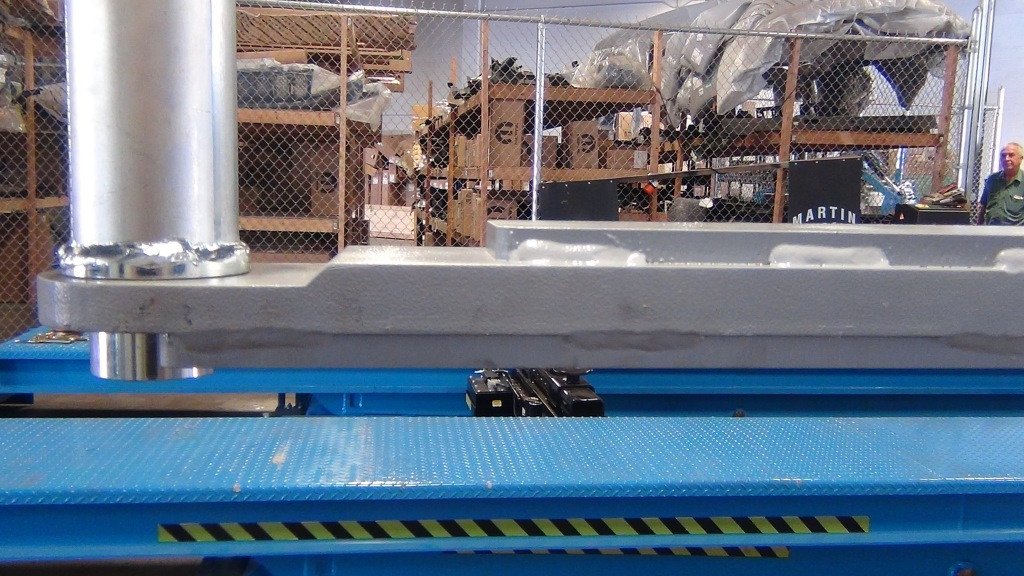

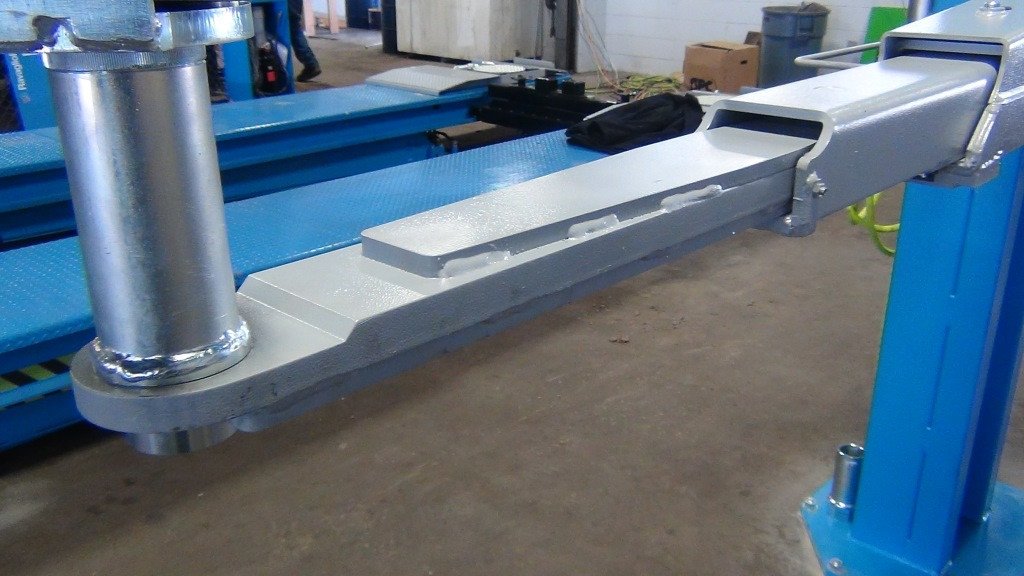

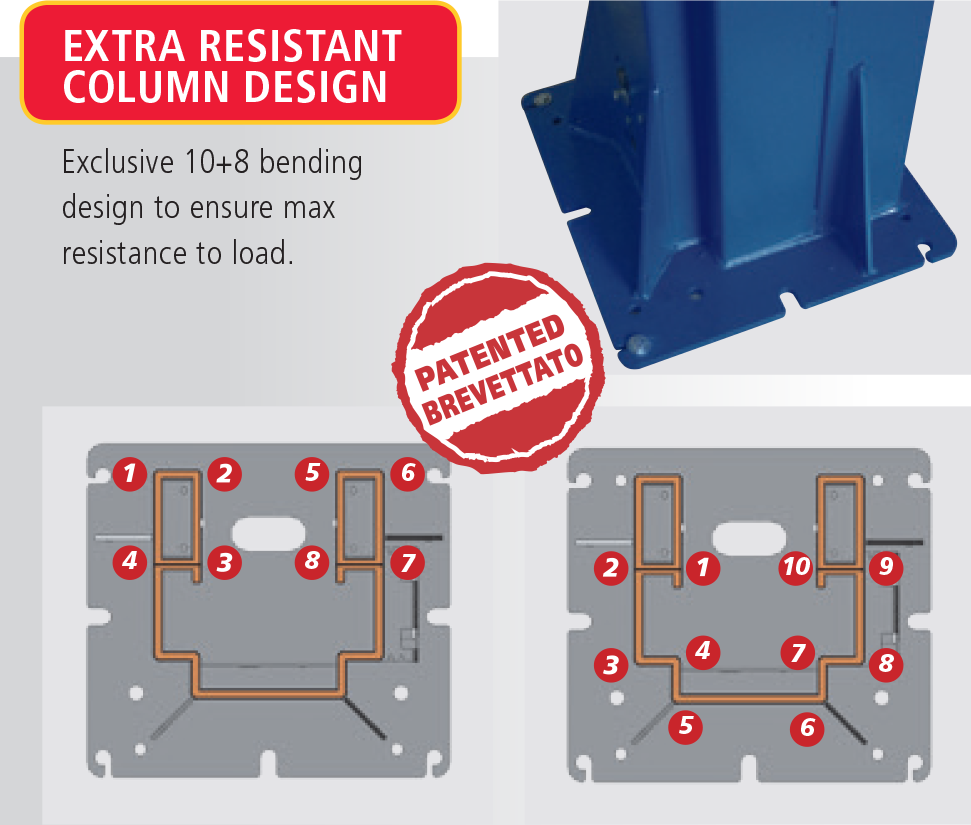

The KPH370.70 Two Post Lift is the only 18,000 lb lift on the market with double wall column construction. Each column is constructed with 20 strength increasing bends making it the strongest column on the market. Commercial vehicles series two post lifts are ALI (American Lift Institute) approved and are available in 18,000 lbs capacities. Like all RAV electro-hydraulic lifts the cylinders are manufactured by RAV in-house to maintained the best quality and longevity is assured. Only the finest Italian steel plate is used in the manufacturing of our structure and superior RAV design and engineering asure a safe and powerful lift system. Arms, adapters, and carriages are usually the first components to show excessive signs of wear on a low quality lift. RAV takes important steps to insure that our components stay working correctly and safely for years to come. The extending arms travel on roller bearings to ease operation when spotting for the under-body pick-up points. The 3rd extending member of each arm is constructed of solid steel (not a tube). This will maintain low pad height to safely swing under low rocker panels of cars as well.

  • Standard with 3 stage front and rear arms for maximum reach
  • 4.9" minimum pad clearance when lowered
  • 80" rise without adapters
  • Perfect synchronization of carriages regardless of load distribution
  • Safety valve to prevent overloading
  • Self-controlled lowering speed
RAV KPH370.70 Specifications
Capacity 18,000 LB.
Lifting Time 1.5 min.
Overall Height 182” (15' 2"), 190” (15' 10"), 198” (16' 6")
Overall Width 153” (12' 9")
Maximum Lift Height 81” (6' 9") (with pad in lowest position)
Minimum Arm Height 5”
Width Between Columns 123" (10' 3")
Drive Thru 103” (8' 7")
Motor HP 3.5
Concrete Requirement 6" with 3000 psi.
Shipping Dimensions L 130" x W 40" x H 36"
Shipping Weight 3105 lbs
