GRS926 MULTI-USE Heavy Duty Tire Changer

The RAV GRS926 is the world’s second fastest truck tire changer (second only to the RAV GTB16). Its versatility allows you to use this machine every day in your workshop or mounted in a closed van for mobile and road-side applications. Quickly change truck tires in your shop or on the road with the GRS926. This Changer is available with 220V 3 phase motor which reduces the cost by $1000. Other features include:

  • Controls on the console

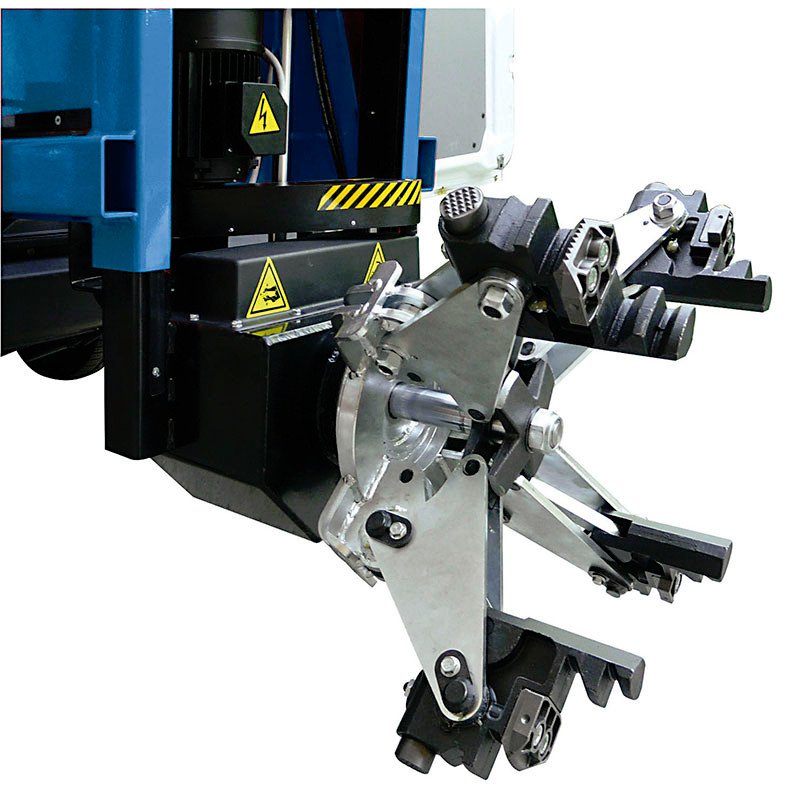

  • Hydraulic chucking table
  • Hydraulic up-down movement
  • Minimum height 13” (330mm)
  • Minimum clamping 4” (90mm)
  • Quick demounting
  • Quick mounting
Technical Data
GRS926
GRS926.ST
Chucking Unit Rotation Motor
1,1
N/A
Hydraulic Drive Unit Motor
2
2
Rim Diameter
11"-27"
14"-27"
Max Wheel Diameter
51"
51"
Max Allowed Wheel Width
37.4"
37.4"
Weight
833 lbs.
750 lbs.
Bead Breaker Power
16000
16000
Max Wheel Weight
2645 lbs
2645 lbs
Chuck Rotation Speed (rev/min)
8
8
Max Torque to Chuck
1253 Ft. lbs
1253 Ft. lbs

See why repair facilities around the world rely on Ravaglioli’s quality and innovation to turn the most difficult tasks into profitable work orders. If your business changes truck tires the GRS926 can make your job easier! Call 1-877-RING-AET to speak with the professionals at AETechnologies today!
