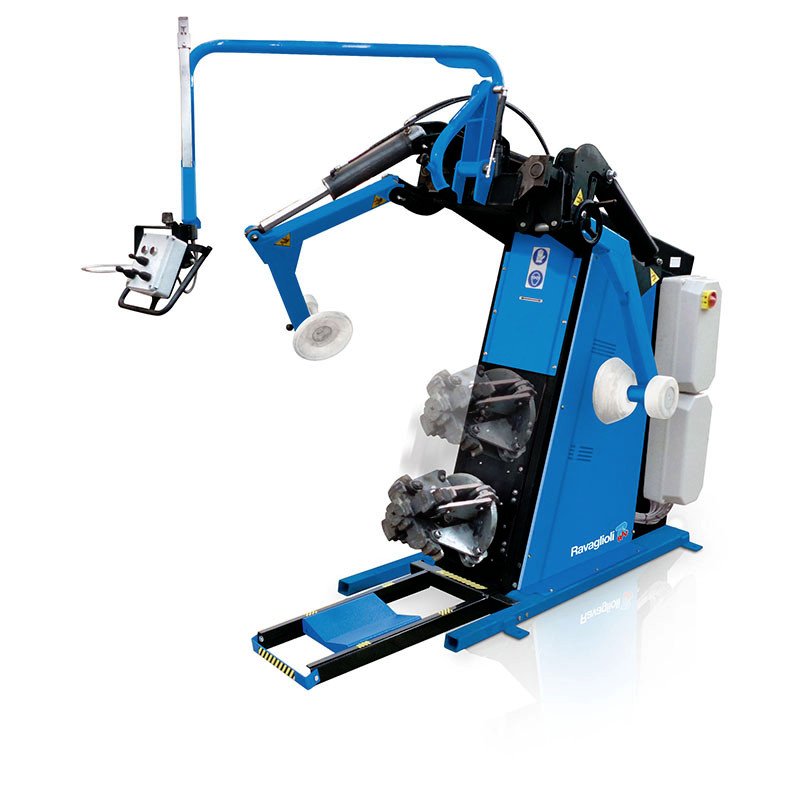

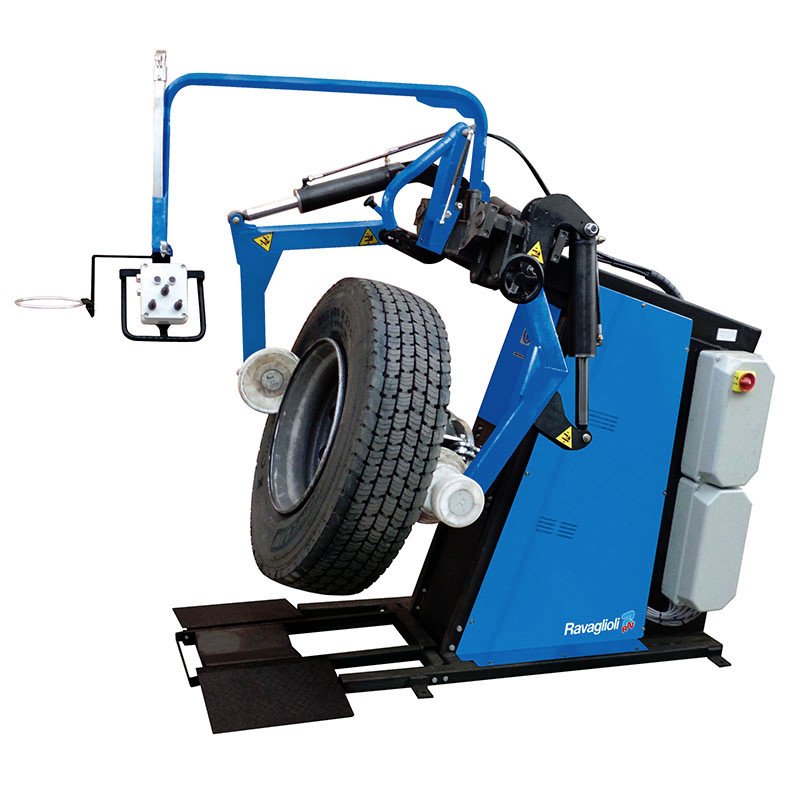

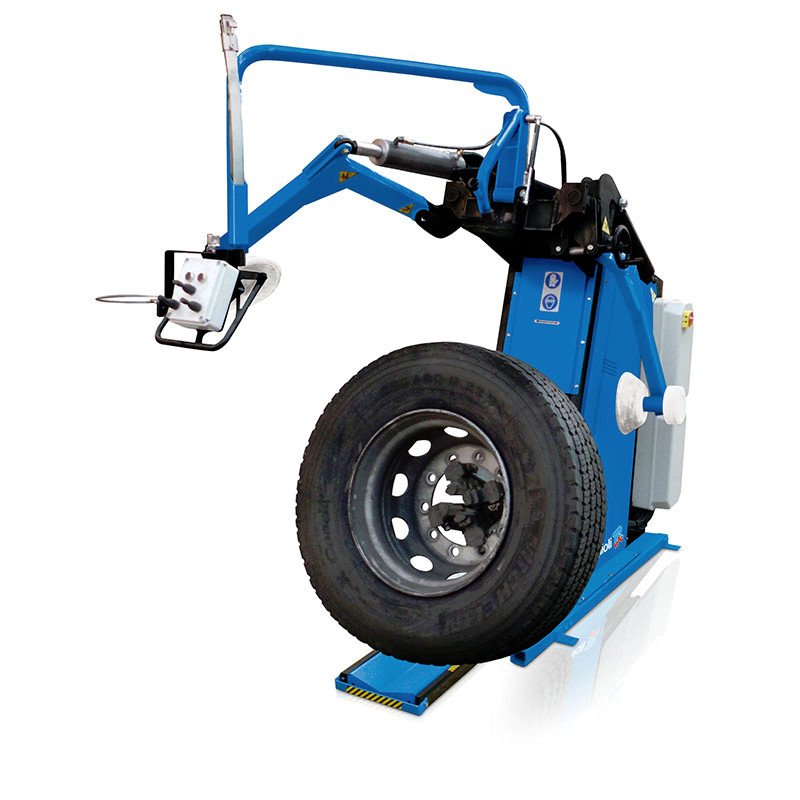

GTB16N BULLET Heavy Duty Tire Changer

The BULLET from Ravaglioli is the world’s fastest truck tire changer. It demounts and mounts tubeless truck tires in 30 seconds! A new concept in truck tire changing specially designed for tubeless tires. Extremely fast with simultaneous bead loosening operation; four bead breakers make fast and simple work of mounting and demounting truck tires. Improve your efficiency up to 50% compared to other machines. This Changer is available in 220V 3phase power which reduces the cost by $1000. Features of the GTB16N BULLET include:

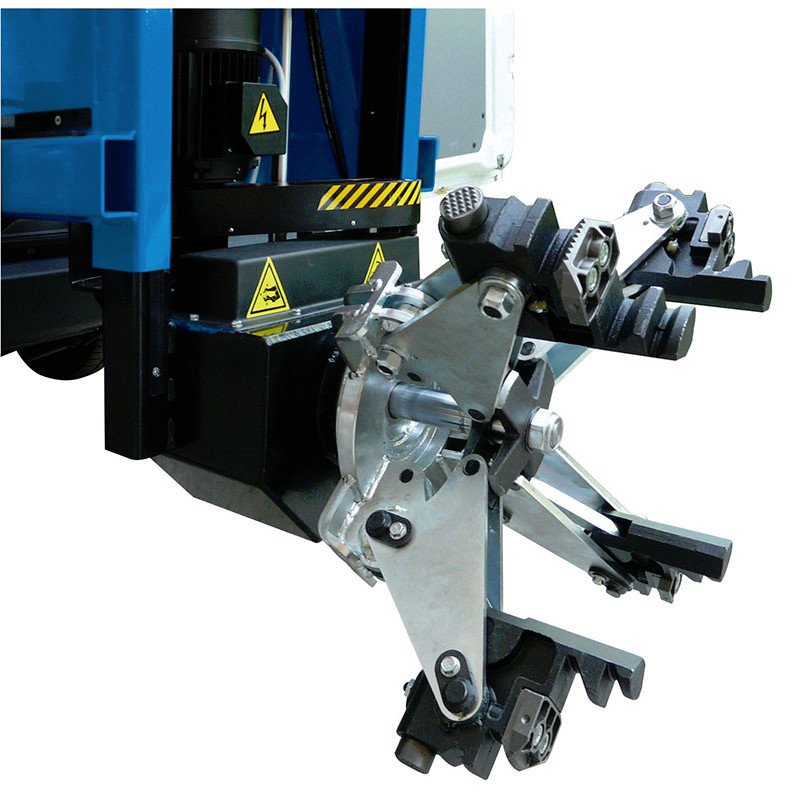

  • Full size industrial clamping unit allows 30% more clamping force
  • Clamping range increased from 17”-24.5” to 14”-27”
  • Minimum clamping height reduced to 13 3/8” (allowing to clamp rims directly from ground the ground)
  • Bead breaking force increased by 20% on both front and rear rollers
  • Optional G108A24 accessory demounts tires with lock ring

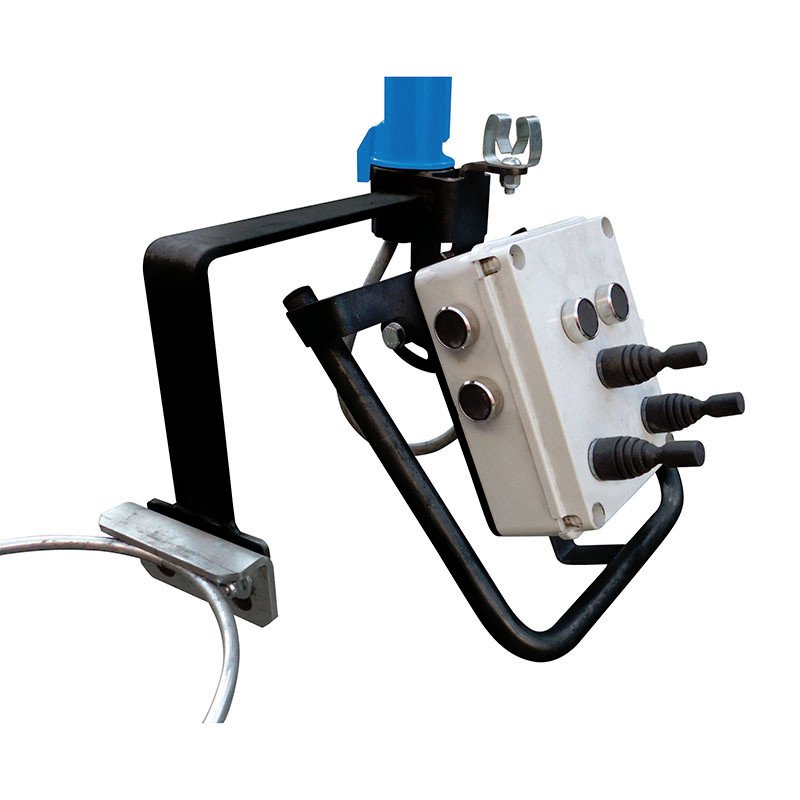

  • Easy to use controls
  • Available in 220 volt single phase or three phase power

Specifications;
Max. Rim Diameter
27"
Min. Rim Diameter
14"
Gear Box Motor
3 HP
Max Dia. Center Hole
11 1/2" (288 mm)
Min. Dia. Center Hole
3 1/2" (85 mm)
Power Supply
220V - 1 or 3 Phase
Rotating Speed, variable
10 RPM
Dimensions
71" x 36" x 75"
Shipping Weight
1350 lbs (615 kg)

 If your business changes truck tires, you have to see the RAV GTB16N BULLET in action.

Call 1-877-RING-AET for a demonstration today!
